Prompting a Model
This section of the guide explains how to send a prompt to a Large Language Model (LLM) in KNIME Analytics Platform.
The process follows three steps:
To clarify each step, this section includes an example workflow. The workflow connects to OpenAI’s GPT-4.1 model and summarizes product reviews stored in a .csv file.
Install the KNIME AI Extension
To use AI in KNIME workflows, install the KNIME AI Extension. You can do this in two ways:
-
From KNIME Hub: Drag the KNIME AI Extension from the KNIME Hub into your KNIME workspace.
-
From within KNIME Analytics Platform:
-
Go to Menu from the toolbar.
-
Select Install extensions.
-
Search for "AI Extension" and follow the instructions to complete the installation.
-

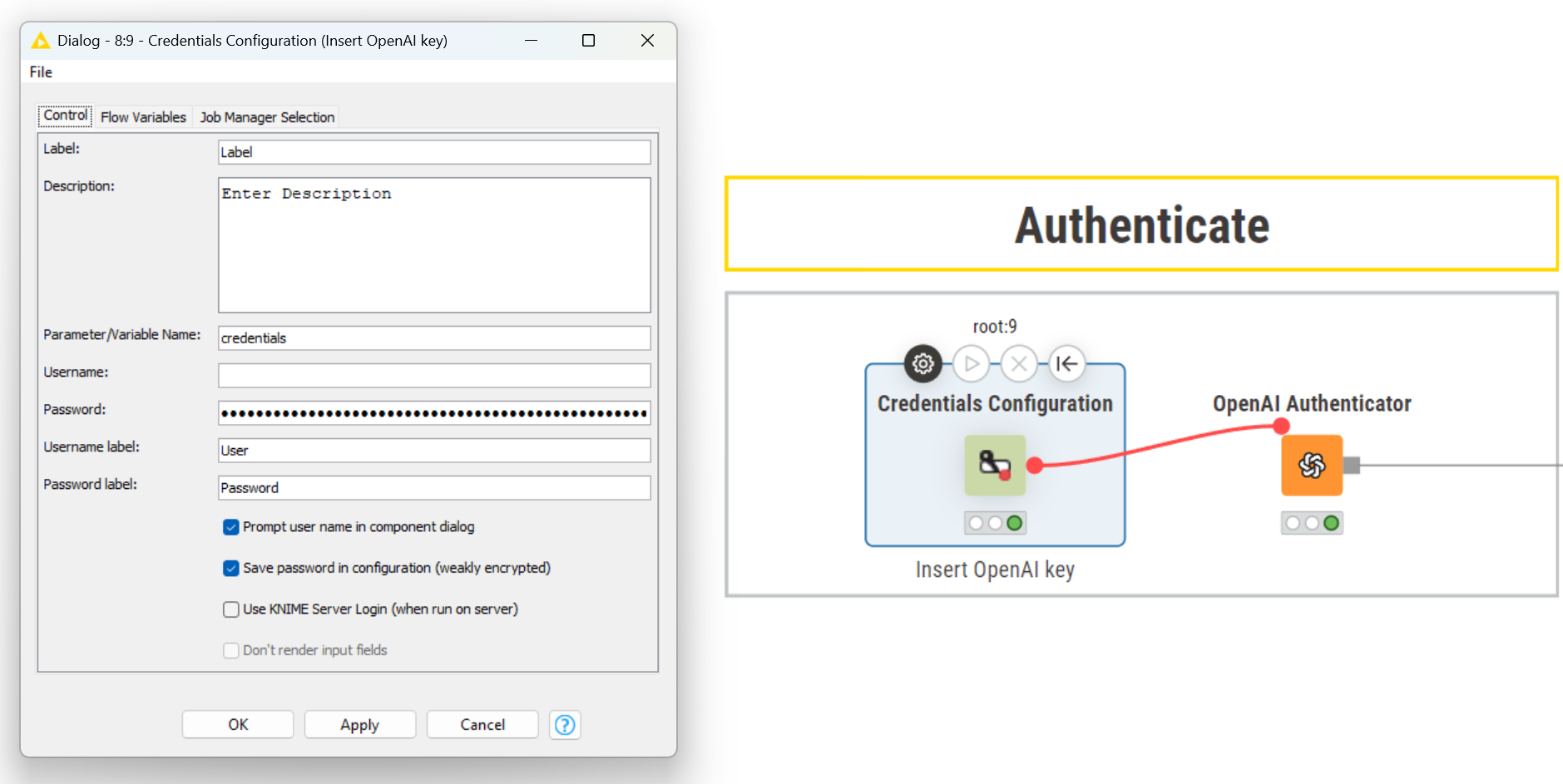

Authenticate
Before sending prompts to models, you must authenticate with your chosen model provider. Most providers require an API key or token obtained from your user account.
Authentication typically involves two nodes:
-
[Provider] Authenticator (e.g. OpenAI Authenticator)
Credentials Configuration node
This node stores credentials as a flow variable for downstream nodes.
In KNIME, a flow variable is a named value that passes data, like credentials or configuration settings, between nodes. Using flow variables makes workflow more flexible and avoids hardcoding sensitive information.
To configure the node:
-
Enter the API key or token in the Password field.
-
Leave the Username field blank
-
If you uncheck Save password in configuration (weakly encrypted), the key is not saved between sessions and must be re-entered when reopening the workflow.
Authenticator node

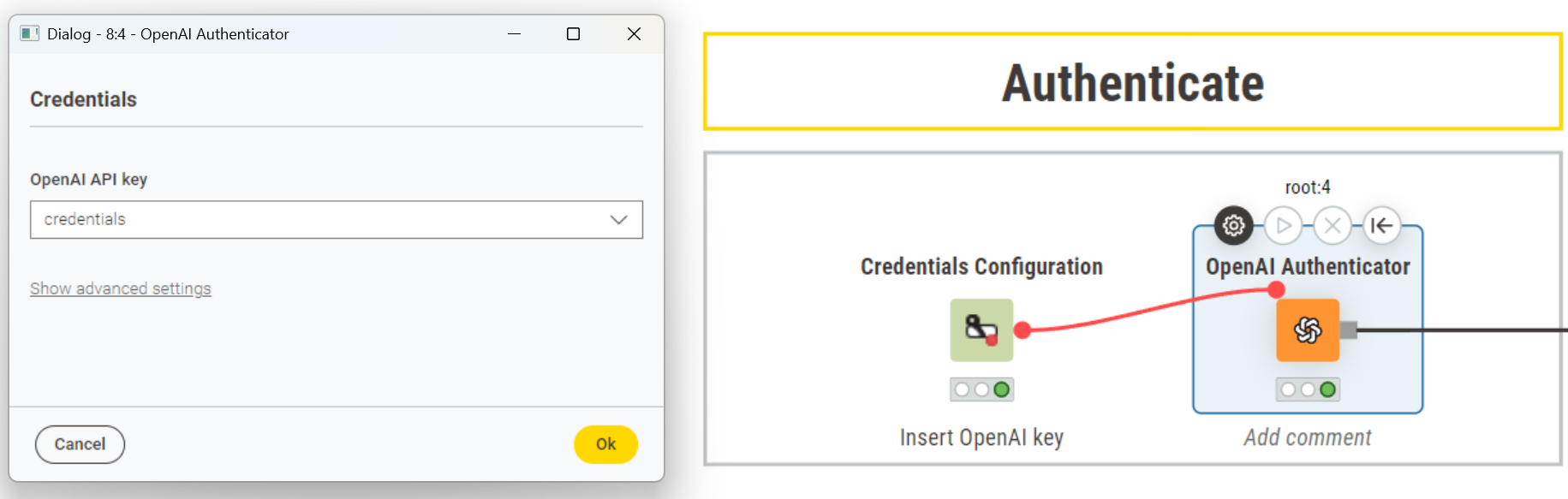

Assign the credentials flow variable to the API key field in the authenticator node’s configuration. Provider-specific parameters (such as region or endpoint) may also be required.
If the credentials are invalid or incomplete, the authenticator node will fail during execution.
Select
After authenticating, use the appropriate connector node to select the model you want to prompt.
The Selector nodes allow you to:
Model selection parameters
-
Max New Tokens / Max Response Length: maximum response size.
-
Temperature: controls output randomness (0 = deterministic, higher = more creative).
-
Advanced Settings: additional parameters such as Top-p Sampling, Seed, or Parallel Requests.
For a full overview of supported providers, available authenticator and selector nodes, required credentials, and example workflows, see the Provider Reference Table.
Prompt
Prompting means sending text instructions to a language model to perform specific tasks. Depending on the node you use, the model can generate text, answer questions, extract information, or return vector representations of the input.
In KNIME, a prompt is simply a string of text. You can create these strings using nodes such as Expression, String Manipulation, or Table Creator.
The KNIME AI extension features three prompting nodes:
-
Single-turn text prompting
-
Chat-style multi-turn prompting
-
Generates embeddings (vector representations)
LLM Prompter
The LLM Prompter node sends simple text prompts to a language model and returns the model’s response as text. It is used for one-shot prompting that does not require conversation history.
Common use cases:
-
Classification
-
Summarization
-
Rewriting
-
Extraction

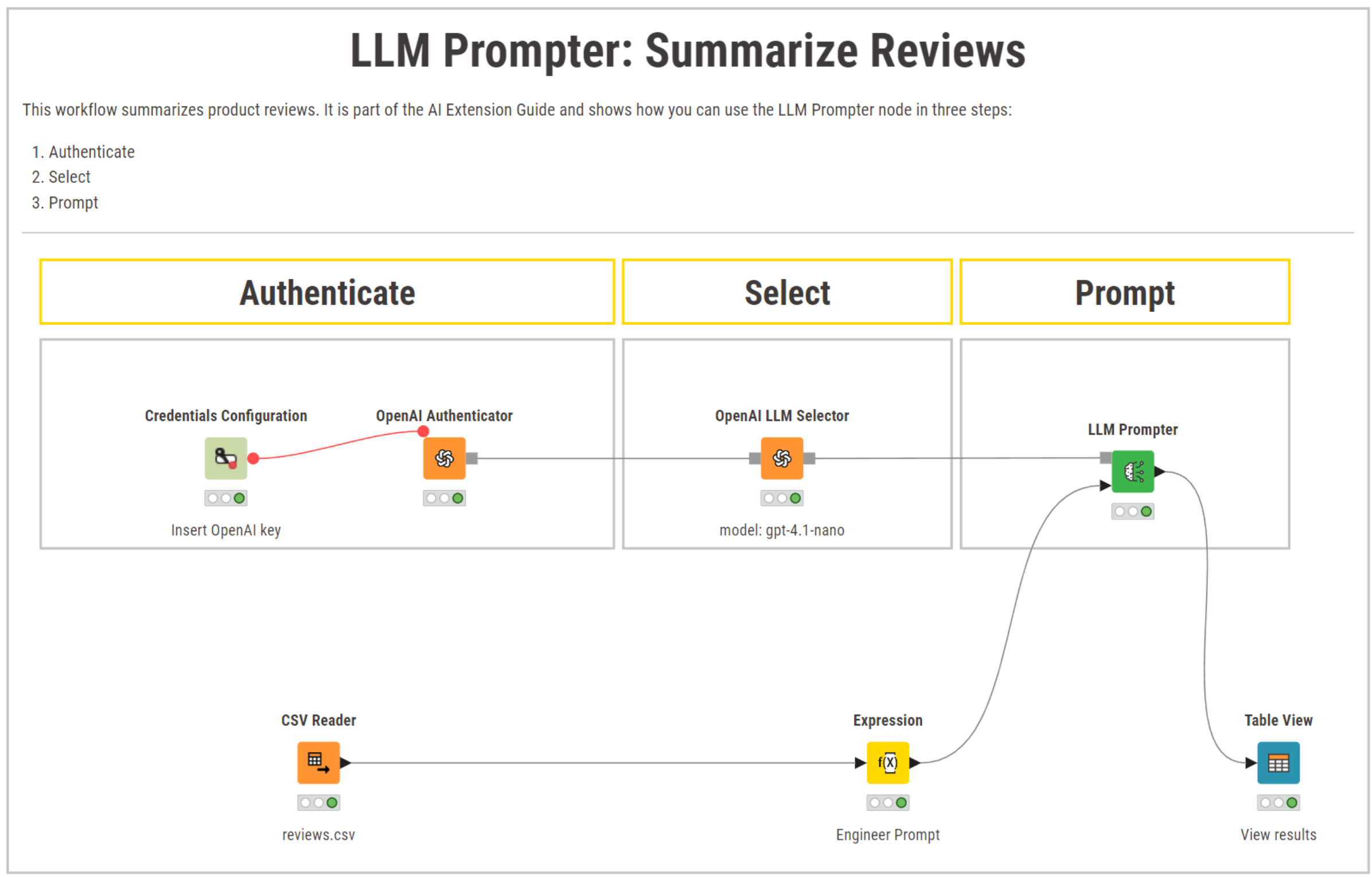

Example: Summarize Product Reviews
You receive product reviews that are too lenghty so you decide to summarize them. The input data looks like this:
ID |
Comment |
1 |
The product arrived on time… user-friendly. |
2 |
The product arrived on time… every day. |
3 |
I bought this as a gift… other family members. |

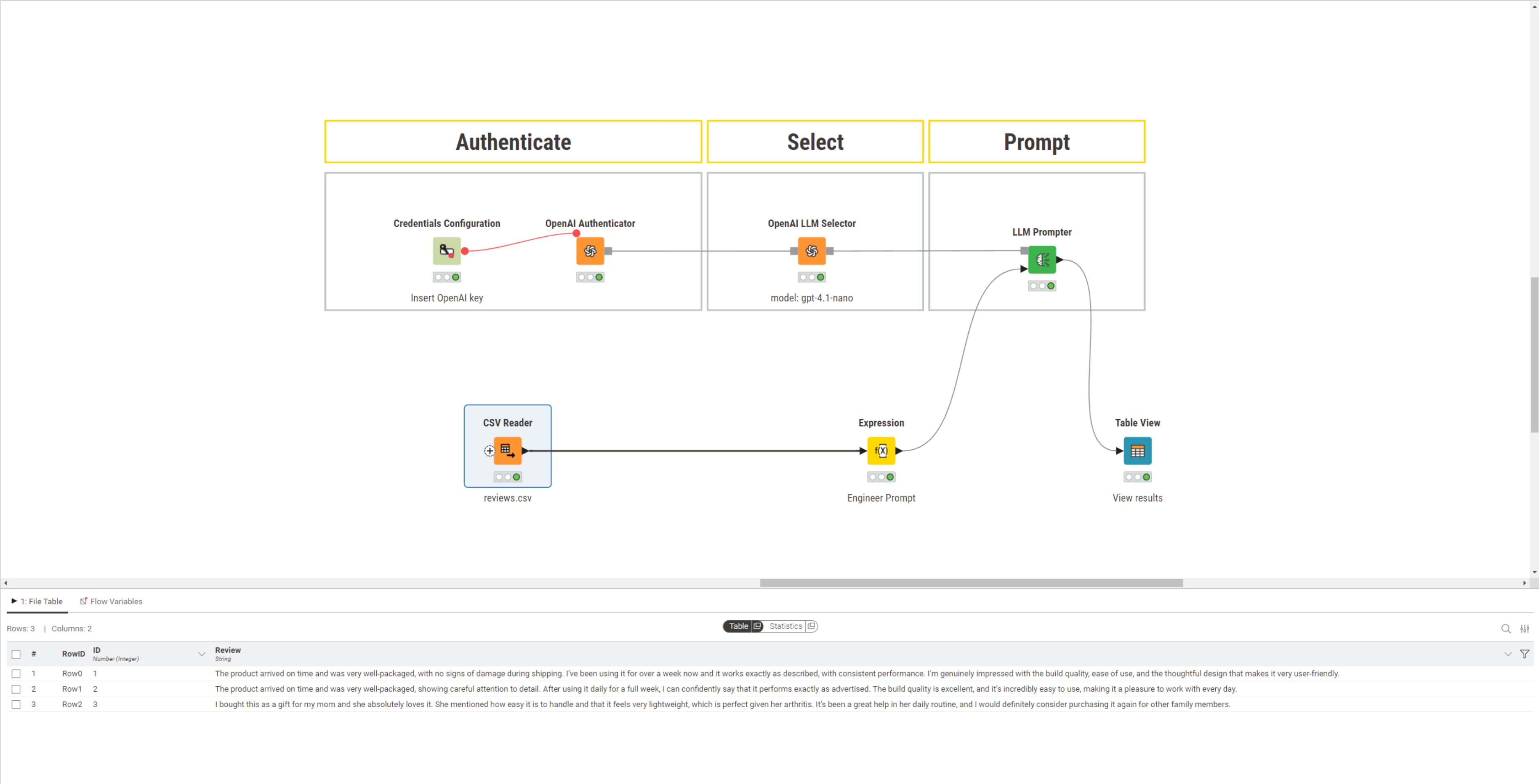

1. Read the data
Use the CSV Reader node to load this table into your KNIME workflow. Each review is stored as a string in the comment column.

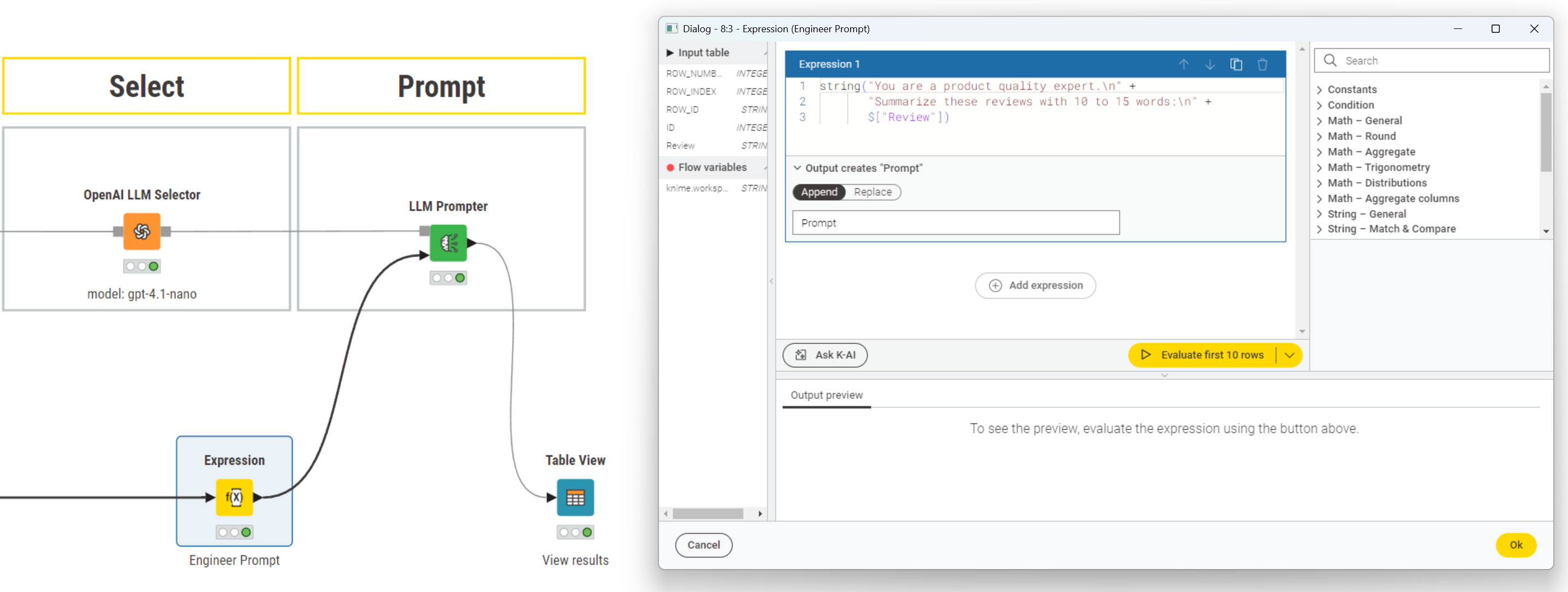

2. Create the prompts
Use the Expression node to build this prompt:
string("You are a product quality expert.\n" + "Summarize these reviews with 10 to 15 characters:\n" + $["Review"])
This creates a new column called prompt that contains the instruction for each row.
3. Authenticate to OpenAI
Use the Credentials Configuration and the OpenAI Authenticator node to provide your API key.

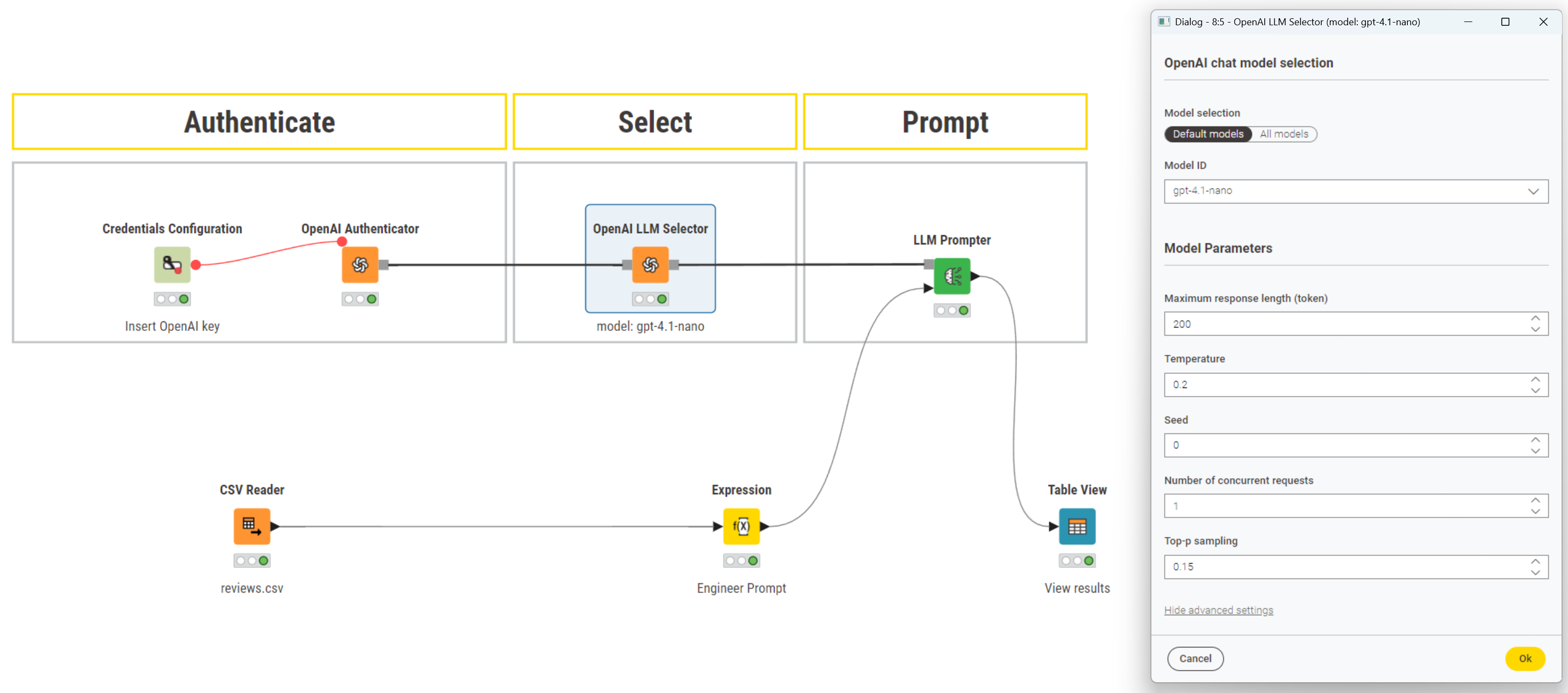

4. Selecting a model
Use the OpenAI LLM Selector node to choose the model you want to use.

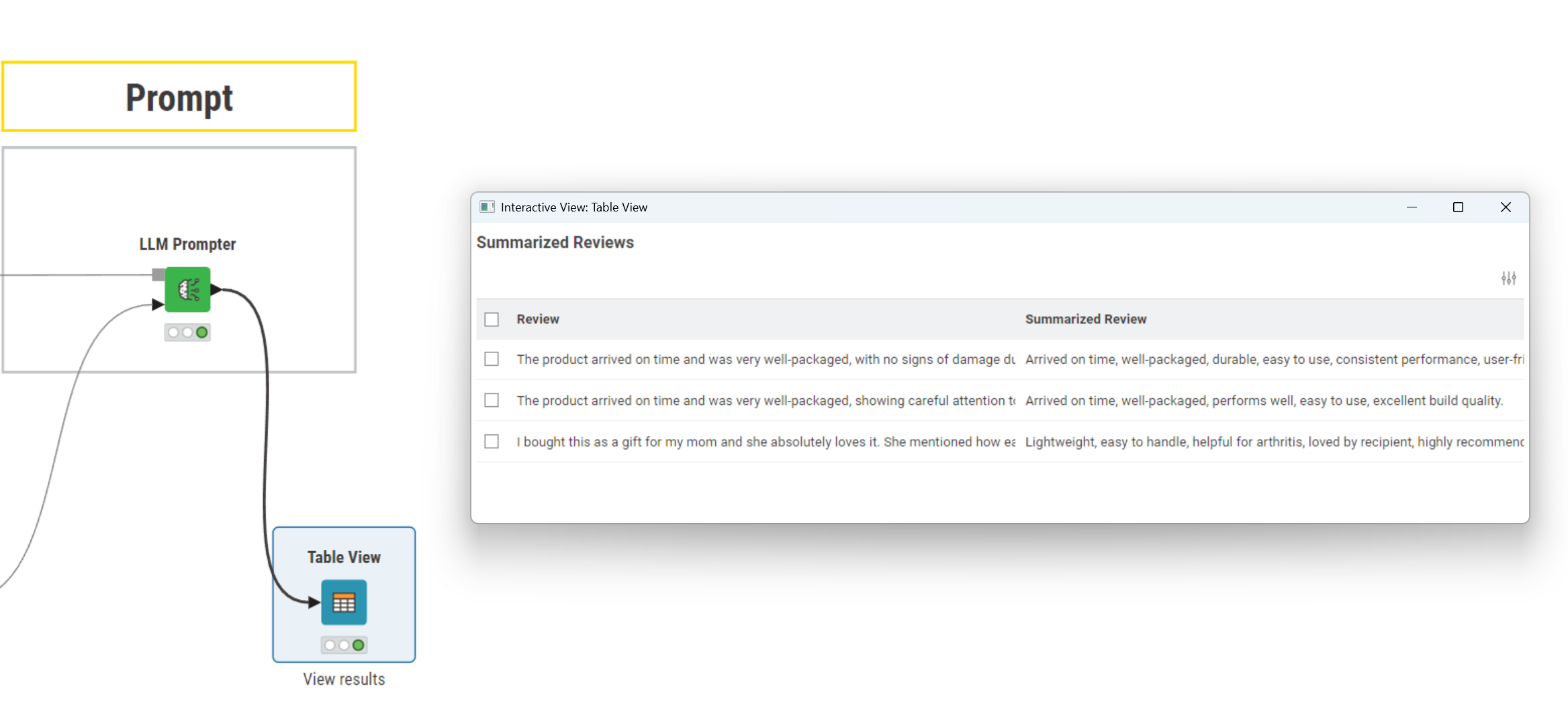

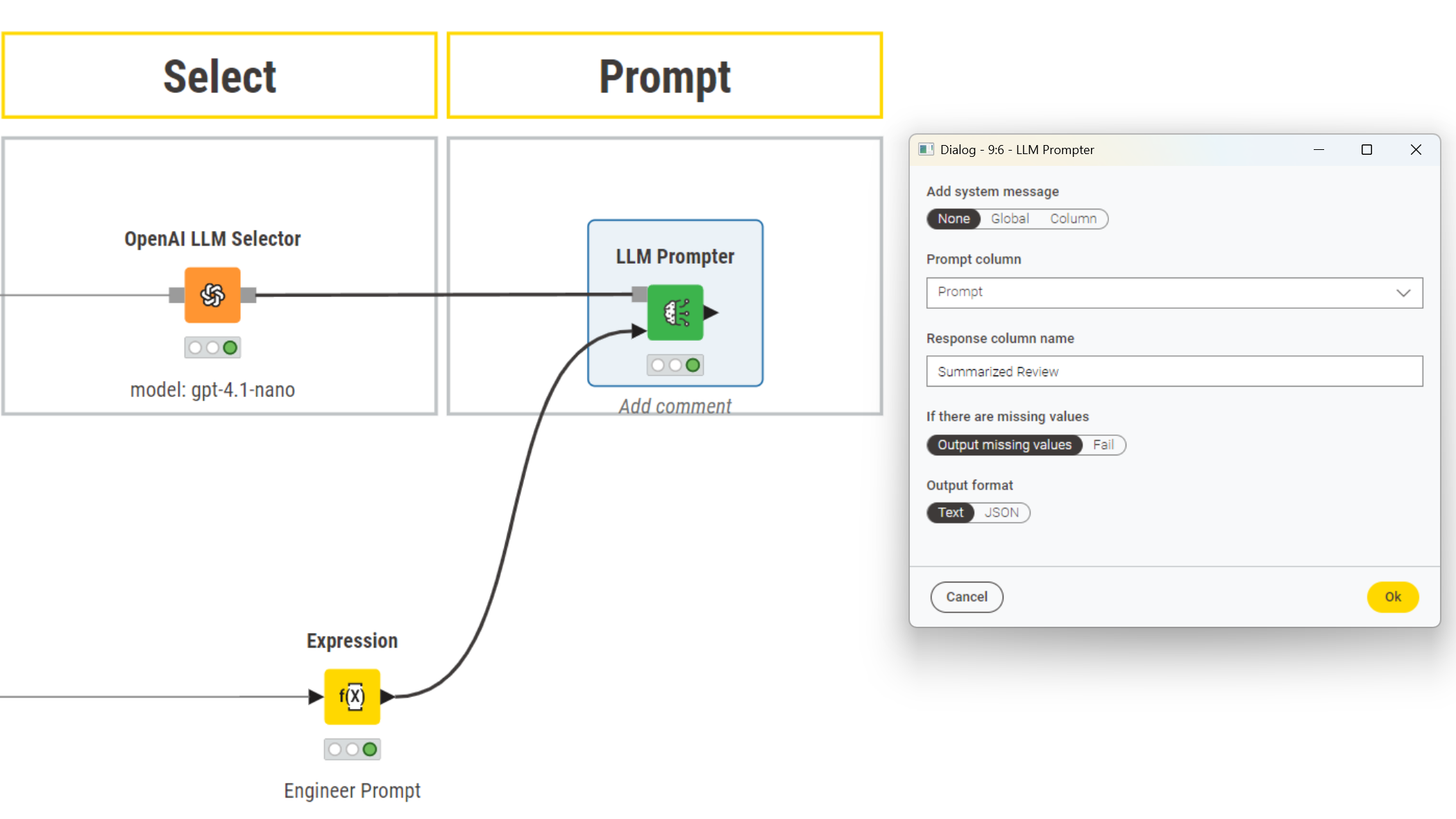

5. Prompt
The LLM Prompter node reads the Prompt column, sends it to the model, and stores the model’s reply in a new column called Response.
To receive structured JSON responses, make sure the selected model supports JSON mode. Also, select JSON as the Output format in the node configuration and explicitly request the JSON format in the prompt itself. In many cases, it helps to include a few examples of the expected structure directly in the prompt to ensure output quality.
LLM Chat Prompter
The LLM Chat Prompter node allows chat-style prompts to a language model. Unlike LLM Prompter, it accepts conversation history as input to provide context for generating responses.
| The LLM Chat Prompter node does not automatically manage multi-turn conversations. The full conversation history must be provided as input for every execution if previous context is required. |
Configuration
-
System Message (optional): defines assistant behavior, e.g., "You are a helpful customer support agent."
-
New User Message (optional): appends a new user message.
-
Output Format: Plain text or JSON.
-
Message Column: column containing KNIME Message type (role, message).
Inputs
The node accepts two additional input ports:
-
Conversation History (optional):
A table containing previous conversation messages in KNIME’s Message format. These messages will be used as context for the current prompt. The node does not automatically manage multi-turn sessions. The full history must be maintained externally and provided again on each node execution if previous context is required.
-
Tool Definitions (optional, advanced):
A table containing tool definitions in JSON format. These definitions enable tool calling functionality. Tool definitions are explained in detail in the Agents workflow section of this guide.
Example: Customer Care Quality Checker
You want to evaluate a conversation between a user and an AI. The input data looks like this:
Role |
Message |
user |
My internet keeps disconnecting randomly. |
ai |
I’m sorry for the inconvenience. Have you tried restarting your router? |
user |
Yes, I have restarted it multiple times. |
ai |
Understood. Are all the indicator lights on your router functioning normally? |
user |
Yes, everything looks fine. |
ai |
Thank you for confirming. It could be a line issue. I recommend checking with your internet provider. |
user |
I contacted them already, but they said everything seems fine on their side. The problem still persists. |

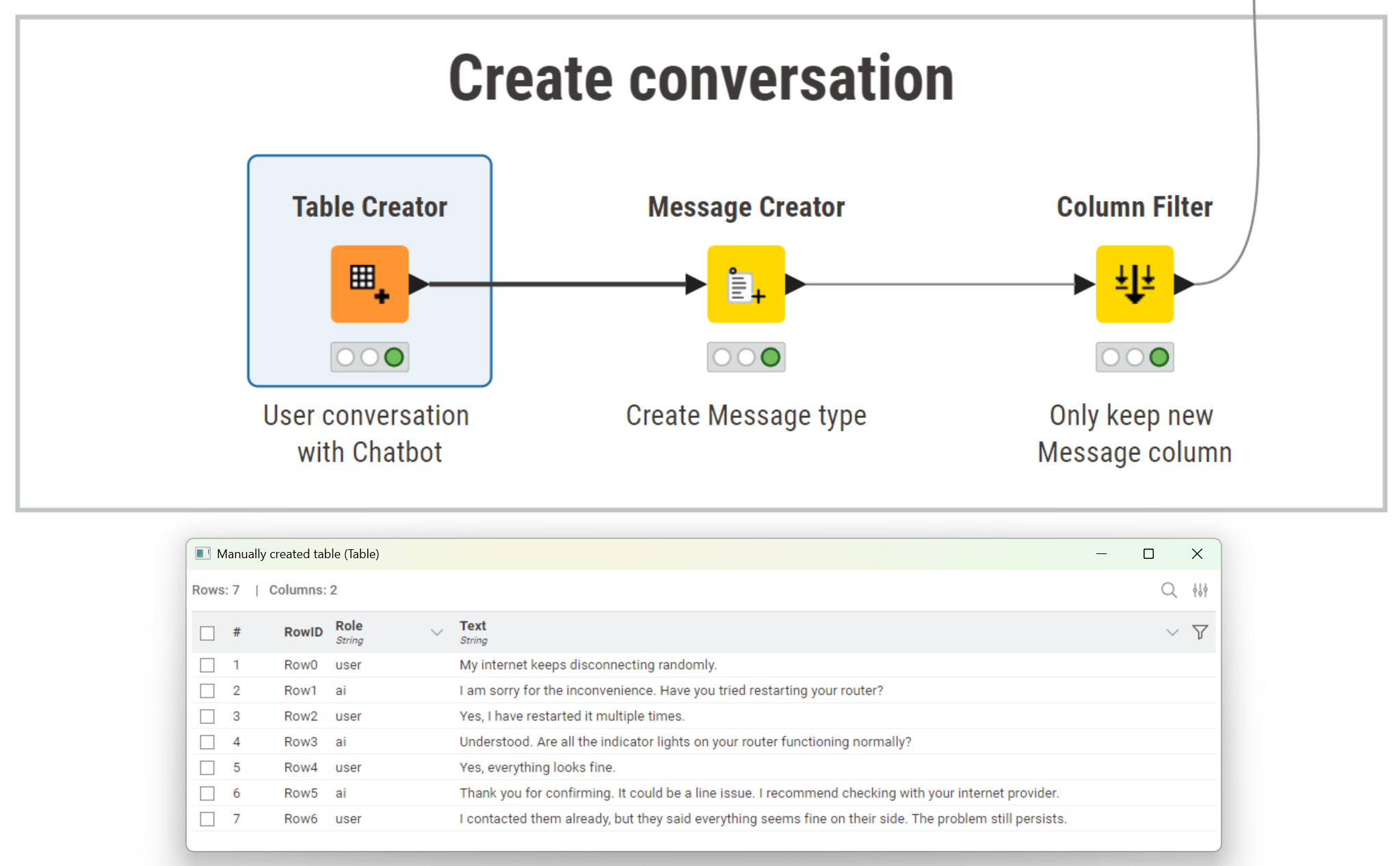

1. Create conversation history
The Table Creator node builds a conversation table with two columns: role and message. This simulates previous turns between the user and the AI assistant.

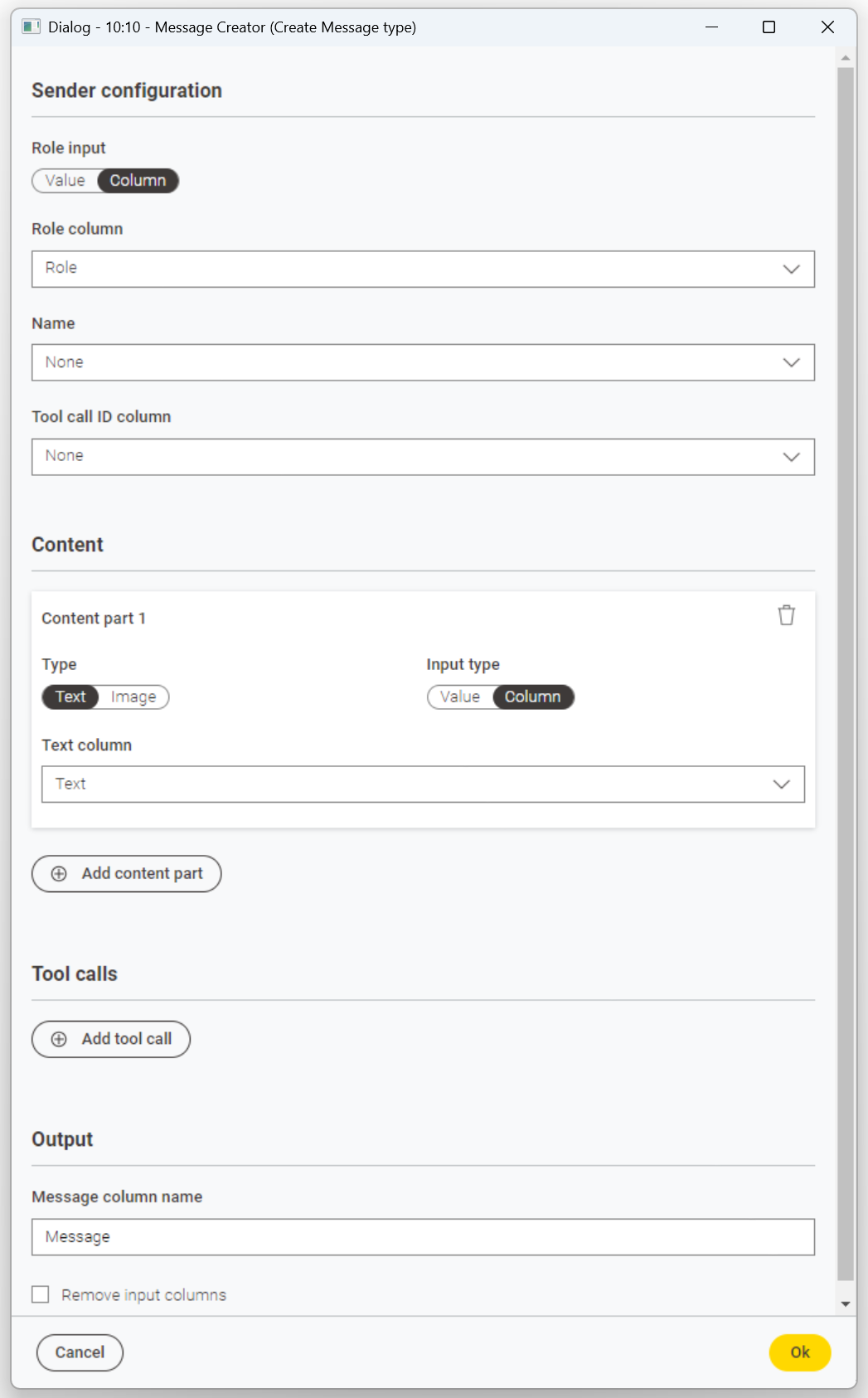

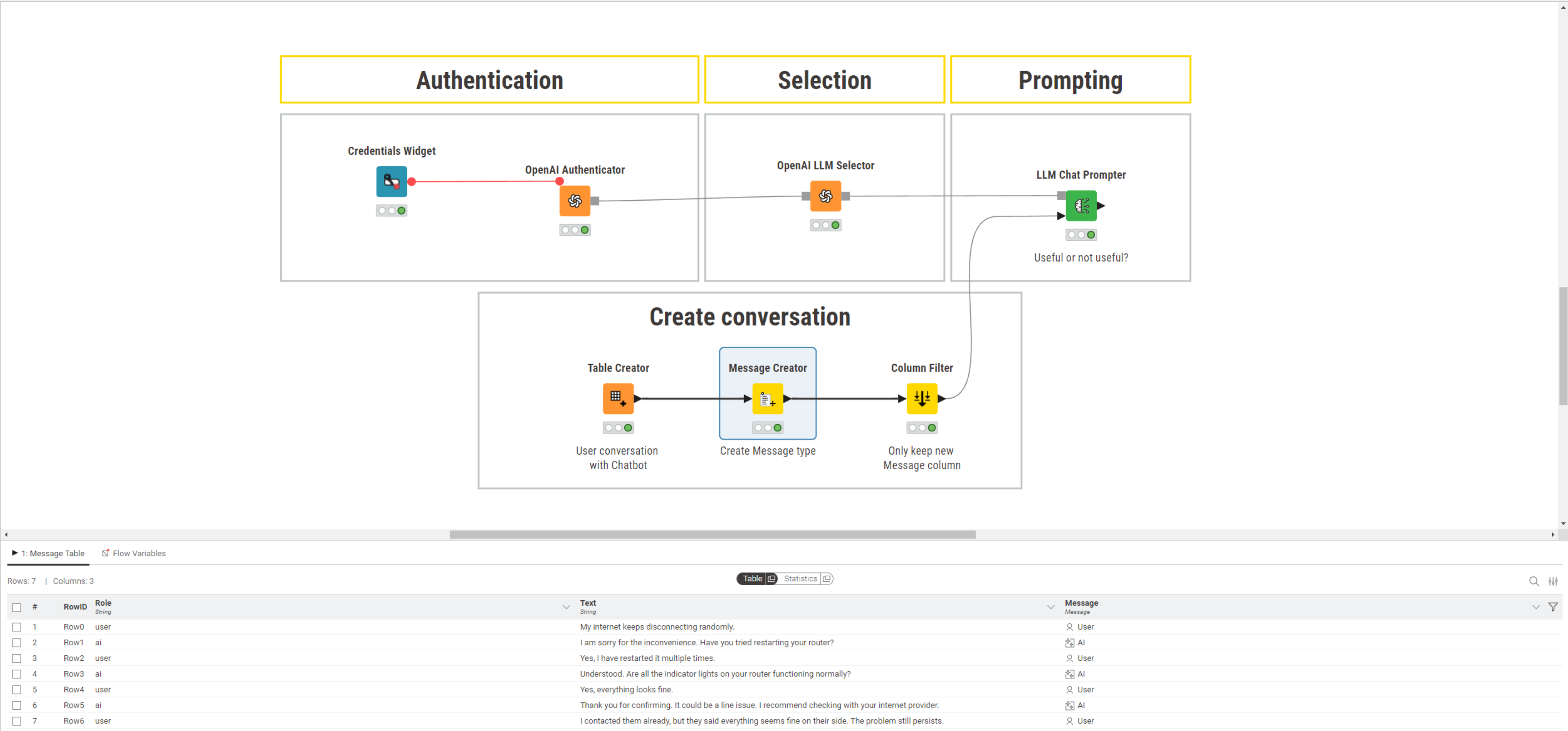

2. Convert to Message type
The Message Creator node transforms the conversation table into KNIME’s Message data type.
-
The input table already contains a column named Role. In the configuration dialog, select this column under Role Column.
-
The message text is already in a column containing the conversation content. Select this column under Text.
After configurating the node, this creates a new column named Message, which contains the KNIME Message data type.
This column combines both role and message content in a format required by downstream nodes such as the LLM Chat Prompter.

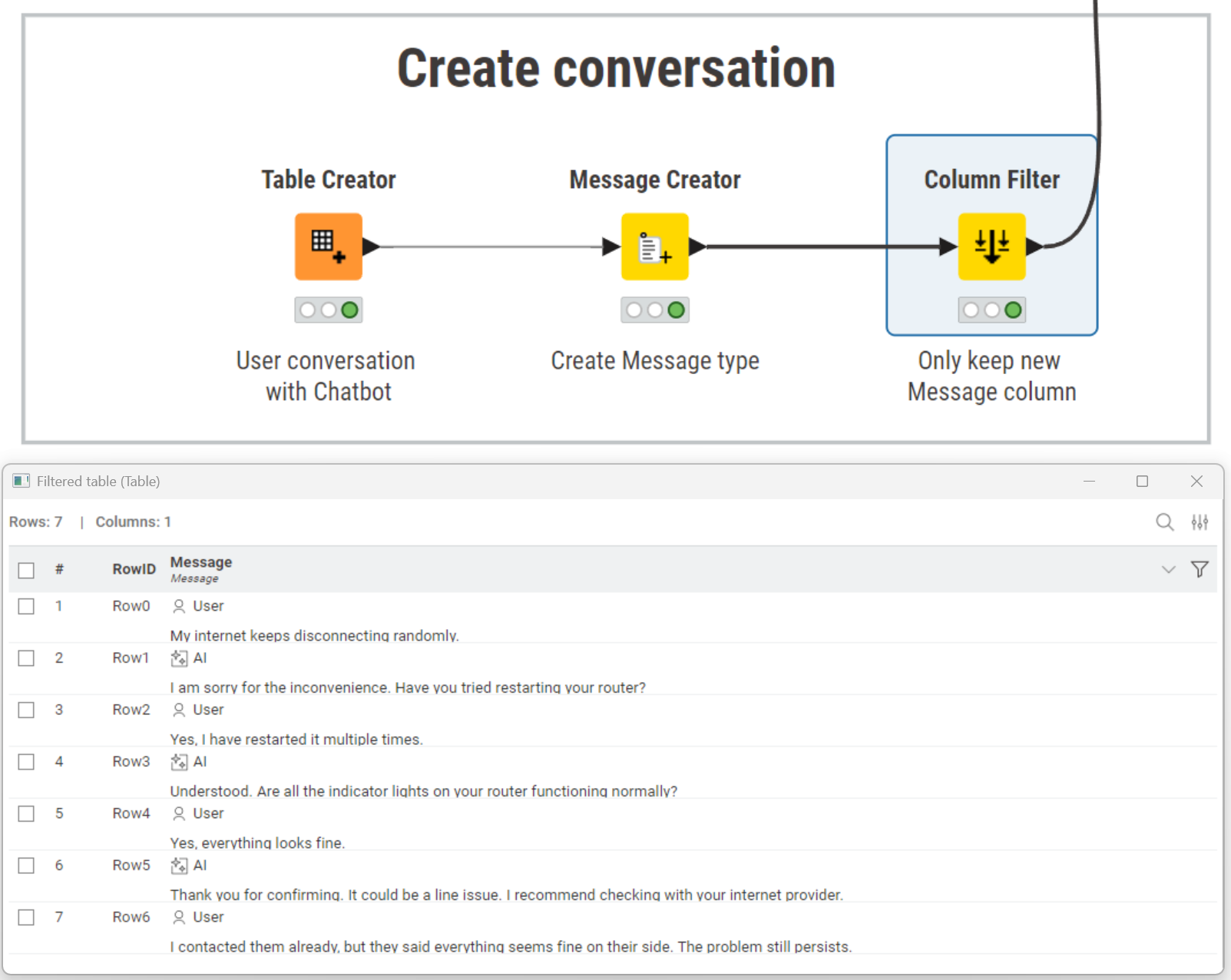

3. Filter Message column
The Column Filter node keeps only the Message column for input into the LLM Chat Prompter.
4. Authenticate to OpenAI
The Credentials Widget and OpenAI Authenticator nodes manage authentication.
5. Select a model
The OpenAI LLM Selector node selects gpt-4o-nano as LLM.

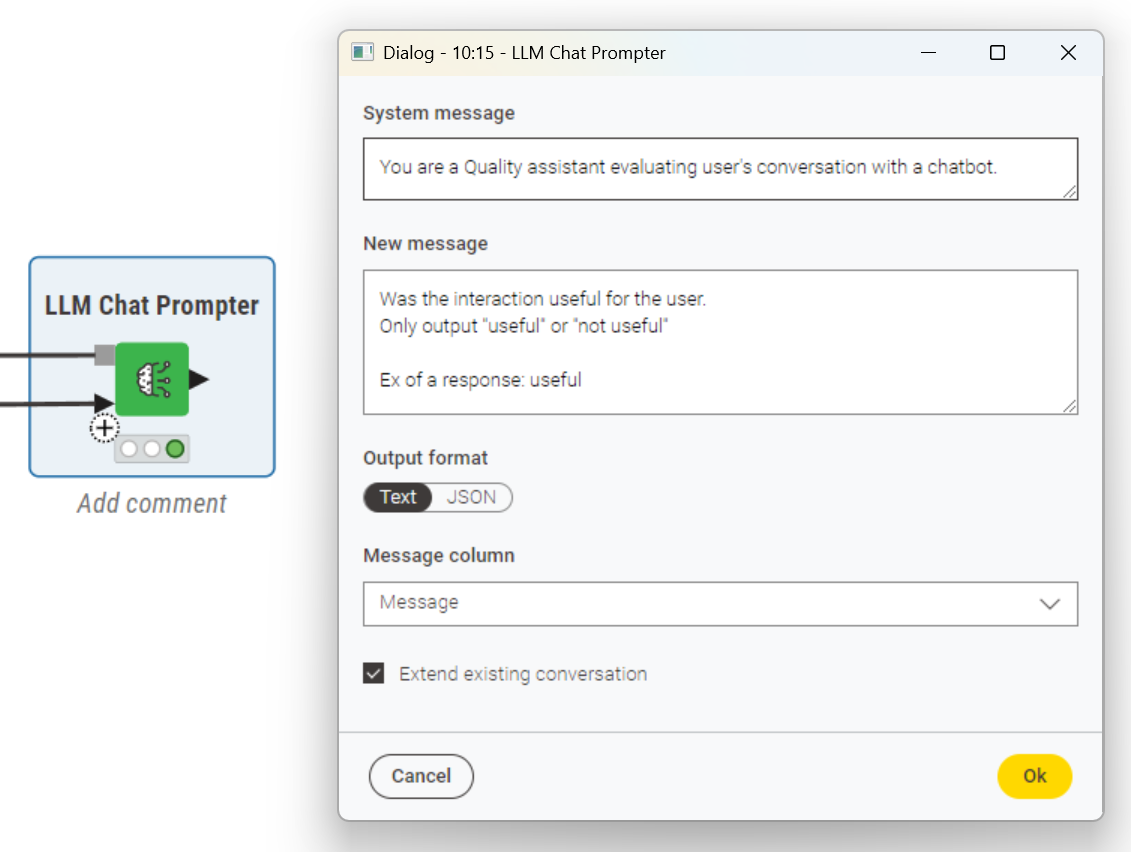

6. Prompt
The LLM Chat Prompter node appends the new user instruction to the provided conversation history and requests a response from the model.
-
System Message:
You are a customer care quality checker.
-
New User Message:
Was the interaction useful for the user? Only output 'useful' or 'not useful'.

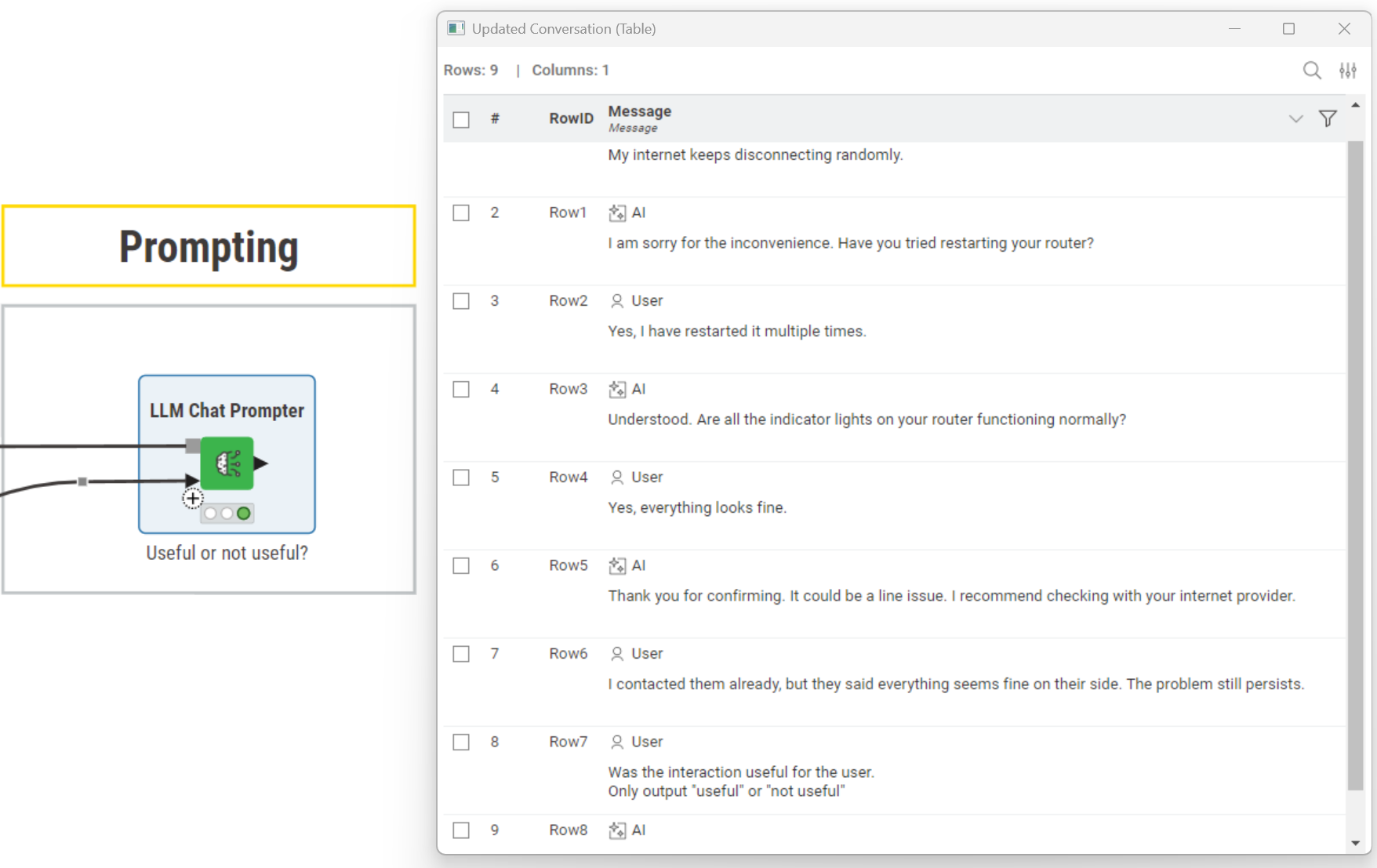

Figure 16. Output of the LLM Chat Prompter node with updated conversation.
Text Embedder
The Text Embedder node converts text into embeddings, which are numerical vectors that capture the meaning of the text.
What is a vector?
A vector is a list of numbers representing a text in mathematical space. Texts with similar meaning are placed close together in this space, even if they use different words. For example, “dog” and “puppy” would be represented by nearby vectors. Embeddings allow models to compare meaning, group similar texts, and search based on semantics rather than simple keyword matching.
Node Output
The node processes each row of the input table and creates a new vector column containing the embedding. Each embedding typically contains hundreds or thousands of numeric values. Unlike the LLM Prompter nodes (which generate natural language text), the Text Embedder produces purely numeric embeddings, fully compatible with distance calculations, clustering, and dimensionality reduction operations in KNIME.
Common use cases:
-
Semantic search: finding texts with similar meaning
-
Clustering: grouping texts into categories
-
Similarity scoring: measuring how close two texts are in meaning

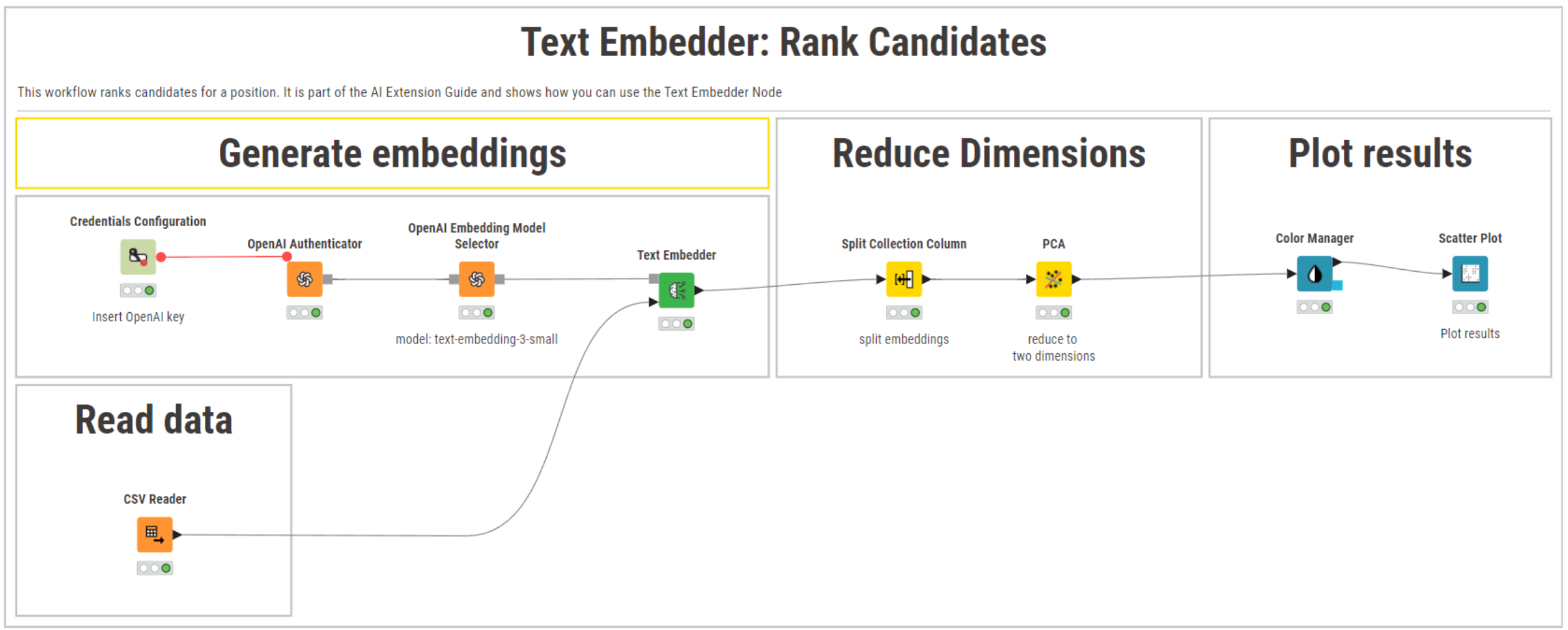

Example: Job Candidate Similarity Plot
You want to find the best matching candidate for a machine learning specialist position that requires a deep knowledge of NLP, reinforcement learning, and experience with large language models.
The input data looks like this:
| Candidate | CV Text |
|---|---|
Candidate 1 |
Senior data scientist with 5 years in NLP and deep learning. Experienced in Python, TensorFlow, and cloud computing. |
Candidate 2 |
Business analyst with expertise in market research, Excel, and customer insights. Limited programming experience. |
Candidate 3 |
Data engineer skilled in ETL pipelines, big data processing, Spark, and distributed systems. |
Candidate 4 |
Machine learning researcher specialized in natural language understanding, reinforcement learning, and generative models. |
Candidate 5 |
Software developer with strong background in Java, web development, and full-stack applications. |
Ideal Profile |
Looking for a machine learning specialist with deep knowledge of NLP, reinforcement learning, and experience with large language models. |
1. Read the data
The CSV Reader node loads the table of CVs and the ideal profile into KNIME.
2. Authenticate
The Credentials Configuration node stores the OpenAI API key. The OpenAI Authenticator node uses these credentials to authenticate with the OpenAI service.
3. Select
The OpenAI Embedding Model Selector node selects the embedding model text-embedding-3-small that will be used to generate embeddings.
4. Prompt (Generate embeddings)
The Text Embedder node converts each CV text into an embedding vector using the selected embedding model.
5. Reduce dimensions
Embeddings are high-dimensional vectors that cannot be directly plotted. The Split Collection Column node separates the vector into individual numeric columns. Then, the PCA node reduces the many dimensions down to two, making the embeddings suitable for 2D visualization.
6. Plot Results

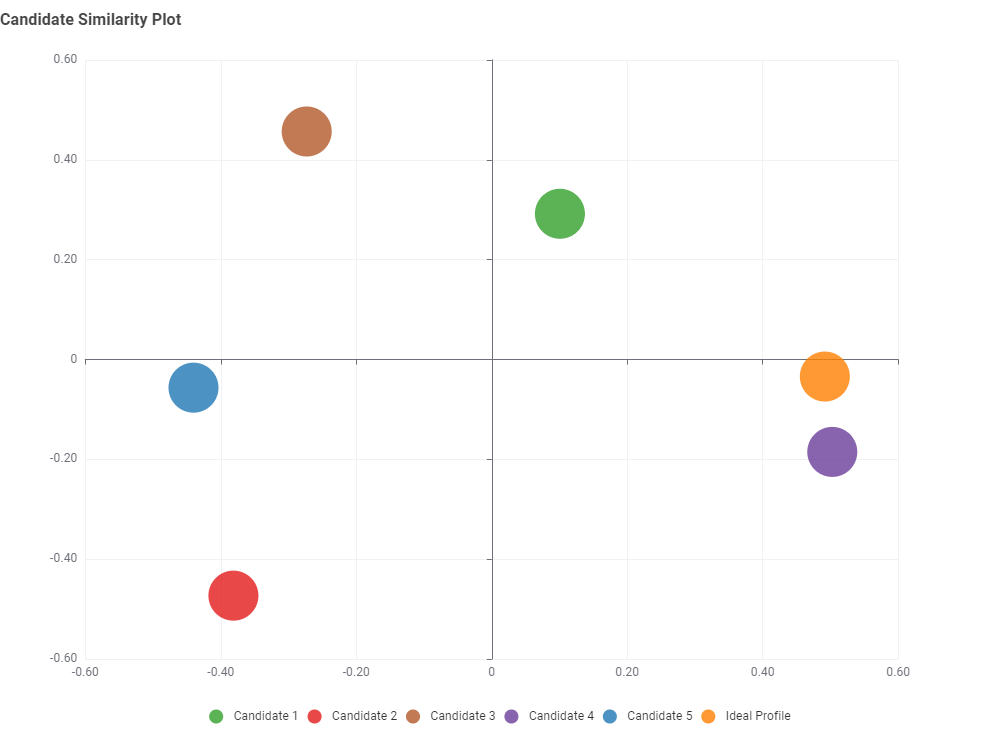

The Scatter Plot node displays how closely each candidate matches the ideal profile based on semantic similarity.
The plot shows that Candidate 4 is closest to the ideal profile, confirming semantic similarity between their experience and the target profile.
Ideal Profile |
Looking for a machine learning specialist with deep knowledge of NLP, reinforcement learning, and experience with large language models. |
Candidate 4 |
Machine learning researcher specialized in natural language understanding, reinforcement learning, and generative models. |
Provider Reference Table
| Authenticator nodes (by provider) | Selector | Required Credentials | Link to Provider | Example workflow |
|---|---|---|---|---|
|
|
|||
Google Authenticator |
|
|
||
Anthropic Authenticator |
Anthropic Chat Model Selector node |
|
||
IBM watsonx.ai™ Authenticator |
|
|
||
|
||||
Vertex AI connector |
|
|||
|
|
|||
|
KNIME Business Hub |
|||
|
|
Vector Stores and Retrieval-Augmented Generation (RAG)
This section builds on the nodes described in the Prompting a Model part of the guide. For a list of supported providers and nodes, see the Provider Reference Table.
Why RAG is useful
Language models have limitations: they can’t access private data, may return outdated responses, and are not easily retrained. Retrieval-Augmented Generation (RAG) addresses these gaps by injecting external knowledge in the prompt. With KNIME, you can build custom RAG pipelines using:
-
Local Vector Stores (FAISS or Chroma)
-
Embedding services (OpenAI, Hugging Face)
-
KNIME nodes for retrieval and generation

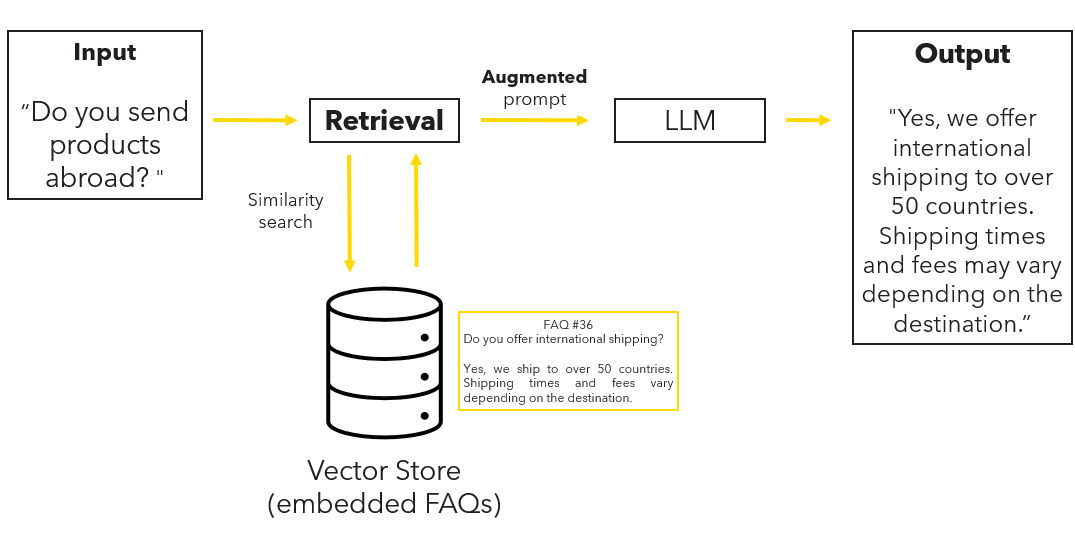

How RAG works
RAG combines retrieval and generation in three steps:
1. Embed documents into vectors
Text documents are transformed into embeddings (high-dimensional vectors) and stored in a vector database.
2. Retrieve context at query time
When a user submits a question, the system retrieves relevant documents by comparing vector similarity.
3. Generate grounded responses
The language model receives both the user query and retrieved content. It uses this context to generate informed, grounded answers. Vector Stores A Vector Store is a searchable database of embeddings. It retrieves semantically similar documents using vector math.
Choose the right Vector Store format
KNIME offers two Vector Store backends, each suited for different retrieval scenarios. Select the one that aligns with your workflow needs:
-
-
Stores vectors in a flat file format.
-
Best suited for fast local retrieval and simple storage scenarios.
-
Ideal when metadata or advanced filtering is not required.
-
-
-
0Stores vectors in a JSON + SQLite format.
-
Supports document collections and metadata.
-
Recommended when you need to group documents or filter search results based on metadata.
-
Create a Vector Store
Use these nodes to generate a Vector Store from embeddings:
-
FAISS Vector Store Creator Builds a FAISS-based index for high-performance local retrieval.
-
Chroma Vector Store Creator Stores embeddings along with metadata using the Chroma backend.
Read a Vector Store
To reuse an existing store in your workflow:
-
FAISS Vector Store Reader loads a saved FAISS index from disk.
-
Chroma Vector Store Reader loads a saved Chroma store, including metadata if present.
Save and reload as Models (optional)
To avoid rebuilding your Vector Store every time a workflow runs, you can save it and reload it later. This is especially helpful for large or frequently reused indexes.
KNIME provides two nodes for this purpose, although they are not part of the AI Extension:
-
Model Writer saves Vector Store as a .model file
-
Model Reader loads Vector Store from .model file into a new workflow.
Example: Product FAQ Assistant with RAG
You want to build an assistant that can answer questions about your company’s products and services. To do this, you decide to use a Retrieval-Augmented Generation (RAG) architecture, with a file containing Frequently Asked Questions (FAQs) as your knowledge base.
Sample FAQ data (CSV)
This is what the file containing FAQs looks like:
ID |
FAQ |
1 |
What is the return policy? You have the right to return a product within 30 days |
2 |
How can I reset my password? You can reset your password by clicking 'Forgot Password' on the login page and following the instructions. |
3 |
Do you offer international shipping? Yes, we ship to over 50 countries. Shipping times and fees vary depending on the destination. |

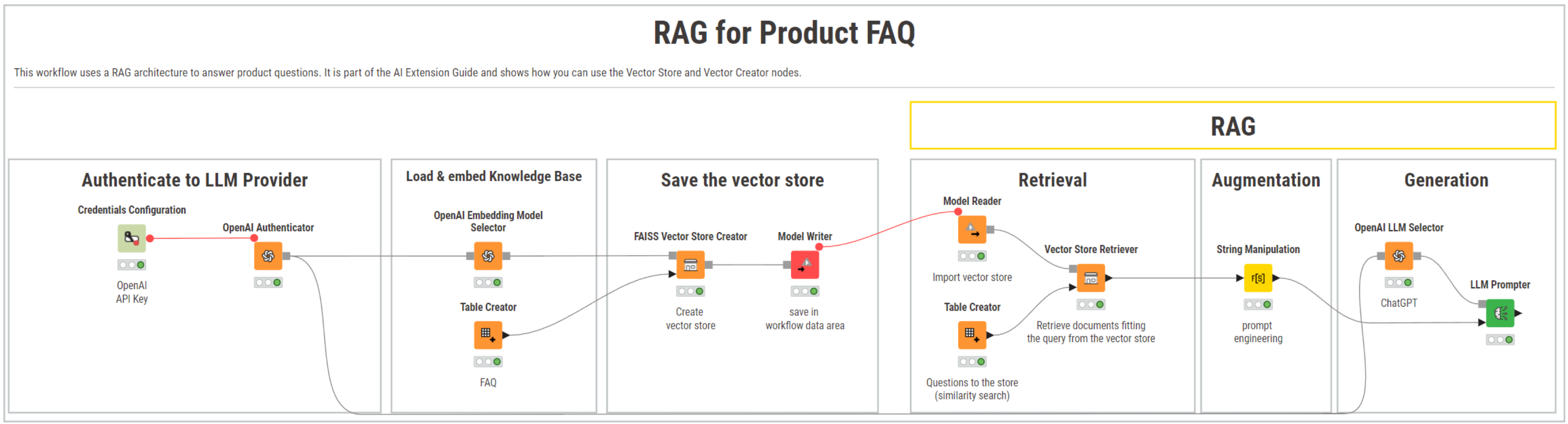

Workflow: FAQ Product Assistant
This workflow implements Retrieval-Augmented Generation (RAG) on a product FAQ file. It includes three main steps: authentication, Vector Store creation, and retrieval-augmented generation.
1. Authenticate
-
Provide API credentials
Use the Credentials Configuration node to store the OpenAI API key.
-
Authenticate
The OpenAI Authenticator node authenticates the connection to OpenAI.
2. Create Vector Store
-
Select embedding model
The OpenAI Embedding Model Selector node selects the embedding model (text-embedding-3-small).
-
Read data
CSV Reader node loads the FAQ file.
-
Create Vector Store

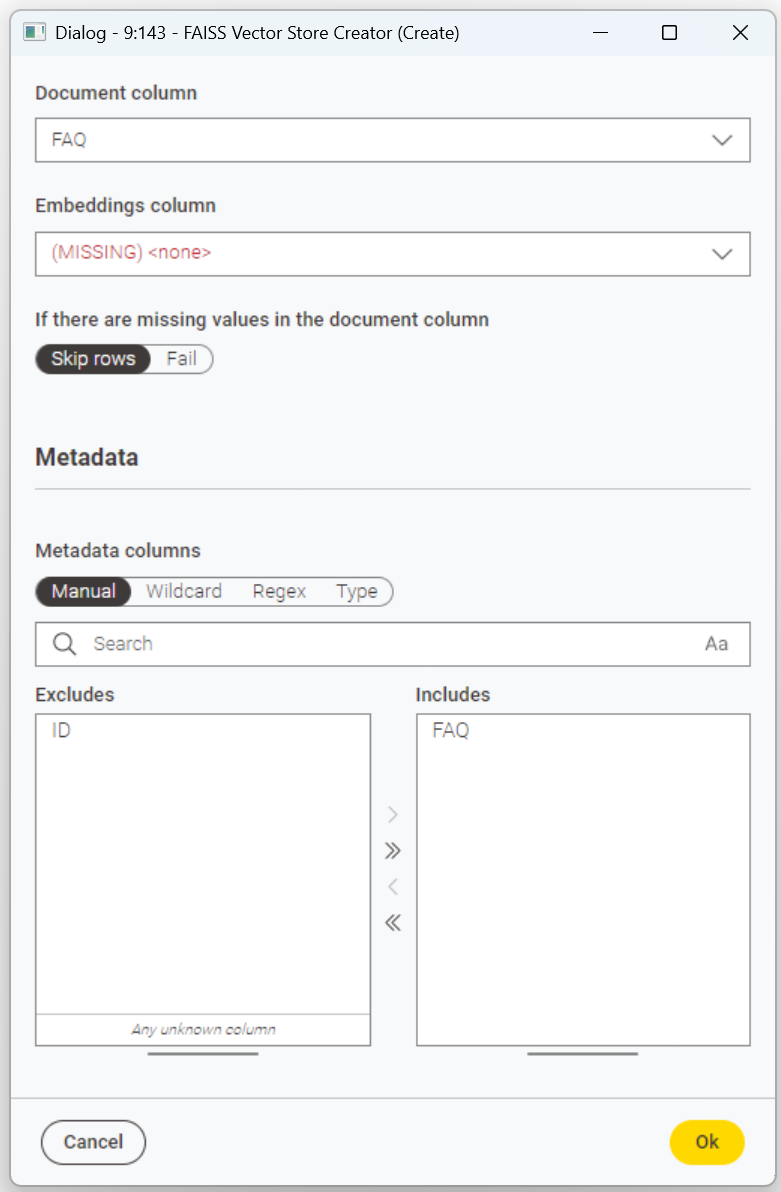

The FAISS Vector Store Creator creates embeddings and store them in a Vector Store
3. Retrieval Augmented Generation (RAG)
Retrieval
-
Load Vector Store
The Model Reader node loads the saved Vector Store from disk. The FAISS Vector Store Reader node brings the store into memory.
-
Provide user query
The Table Creator node simulates a user query.
-
Generate query embedding
The OpenAI Embeddings Connector node generates an embedding for the user query using the same embedding model.
-

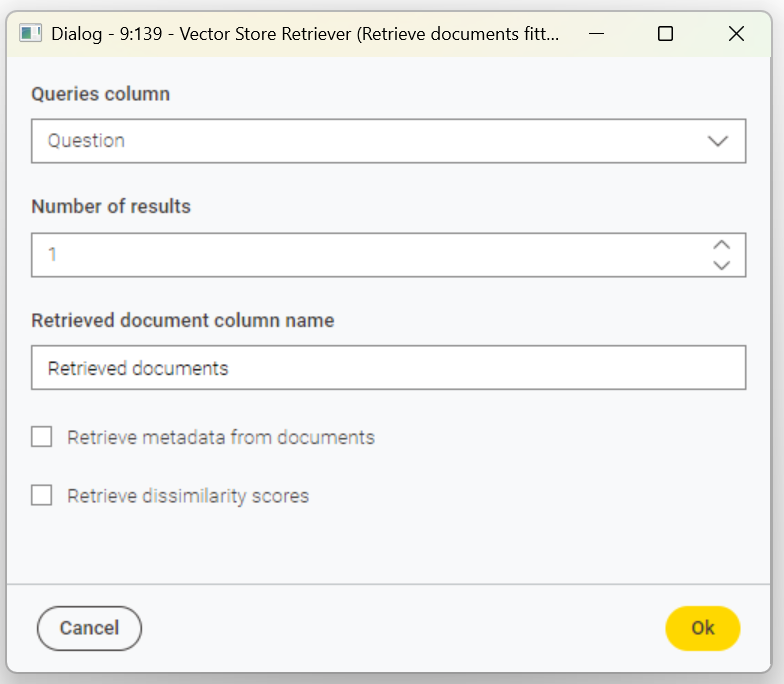

Retrieve similar entries
The Vector Store Retriever node compares the query embedding against the stored embeddings to retrieve the most similar FAQ entries. In this example, the number of retrieved results is set to 1 due to the small dataset. In real use cases, retrieving multiple results can improve grounding by providing the model with more context.
Augmentation
-

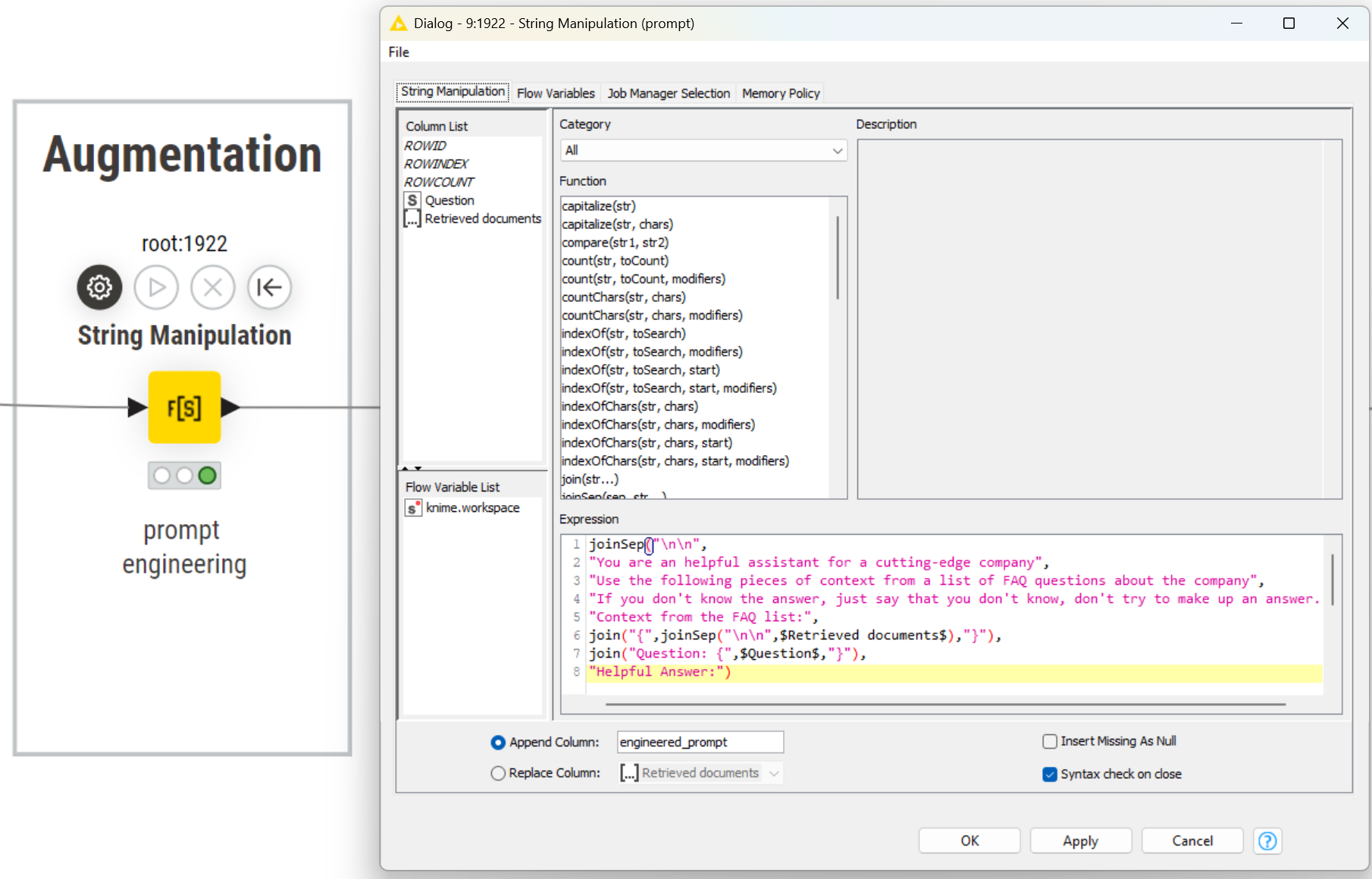

Prepare context
The String Manipulation node merges multiple retrieved FAQ answers into a single string using:
JOINSEP("\n", column("Answer"))
This creates a combined context block for the language model.

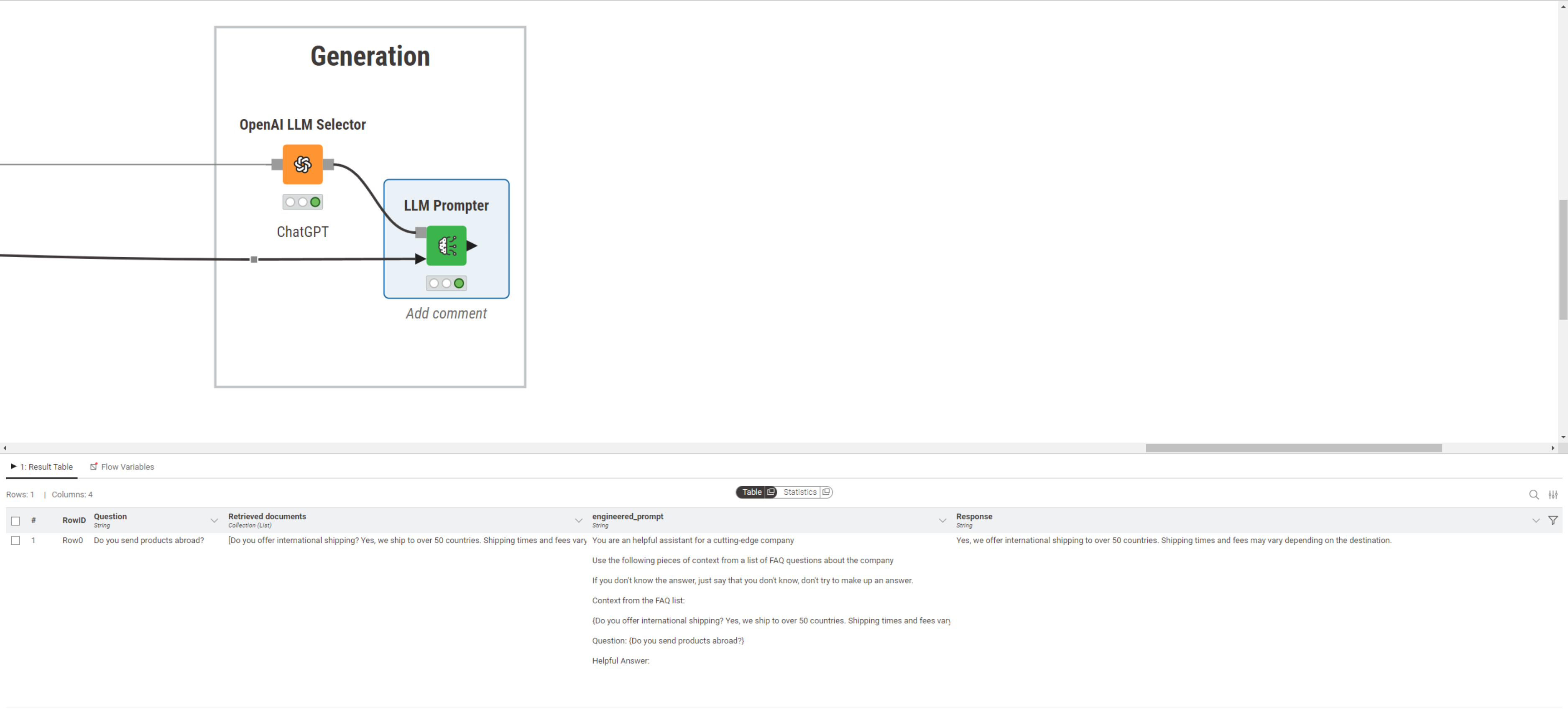

Generation
-
Send Prompt to model
The LLM Prompter node sends both the user question and the retrieved FAQ context to the language model.
-
Output Response
The model’s reply is written into a new column called Response.
Agents
An agent is a language model that solves tasks step by step by choosing from a set of available tools. It reads a user’s request and selects the most relevant sequence of tools to generate a useful response.
When an agent receives a task from the user, it follows a step-by-step thinking process:
-
Understand a task.
-
Call a tool.
-
Evaluate the result.
-
Decide if more steps are needed.
-
Continue until the task is completed.
In KNIME, agents and tools are workflows. The agent orchestrates these workflows to complete tasks, while the tools provide specific capabilities like data processing, analysis, or external API calls.
In this guide, you will learn how to build agentic workflows in KNIME Analytics Platform. You will discover how to create tools, define their behavior, and set up the agent’s reasoning process.
| For more information about agents, see the Agentic AI and KNIME blog post. |
The two layers of KNIME agentic workflows
A KNIME agentic workflow consists of two layers:
-
Communication layer
The communication layer manages the agent’s reasoning. It interprets the user’s request, chooses which tool (or tools) to call, and evaluates the results. The agent moves step by step, making decisions and building a response based on the information it receives. Each step is represented as a message, allowing the full reasoning process to be tracked.
-
Data layer
The data layer handles actual data processing. While the agent cannot directly view data tables, it can activate tools that read, filter, or analyze data. These tools run in the background and return only the final result. The agent can then use this result to complete the task or continue reasoning.

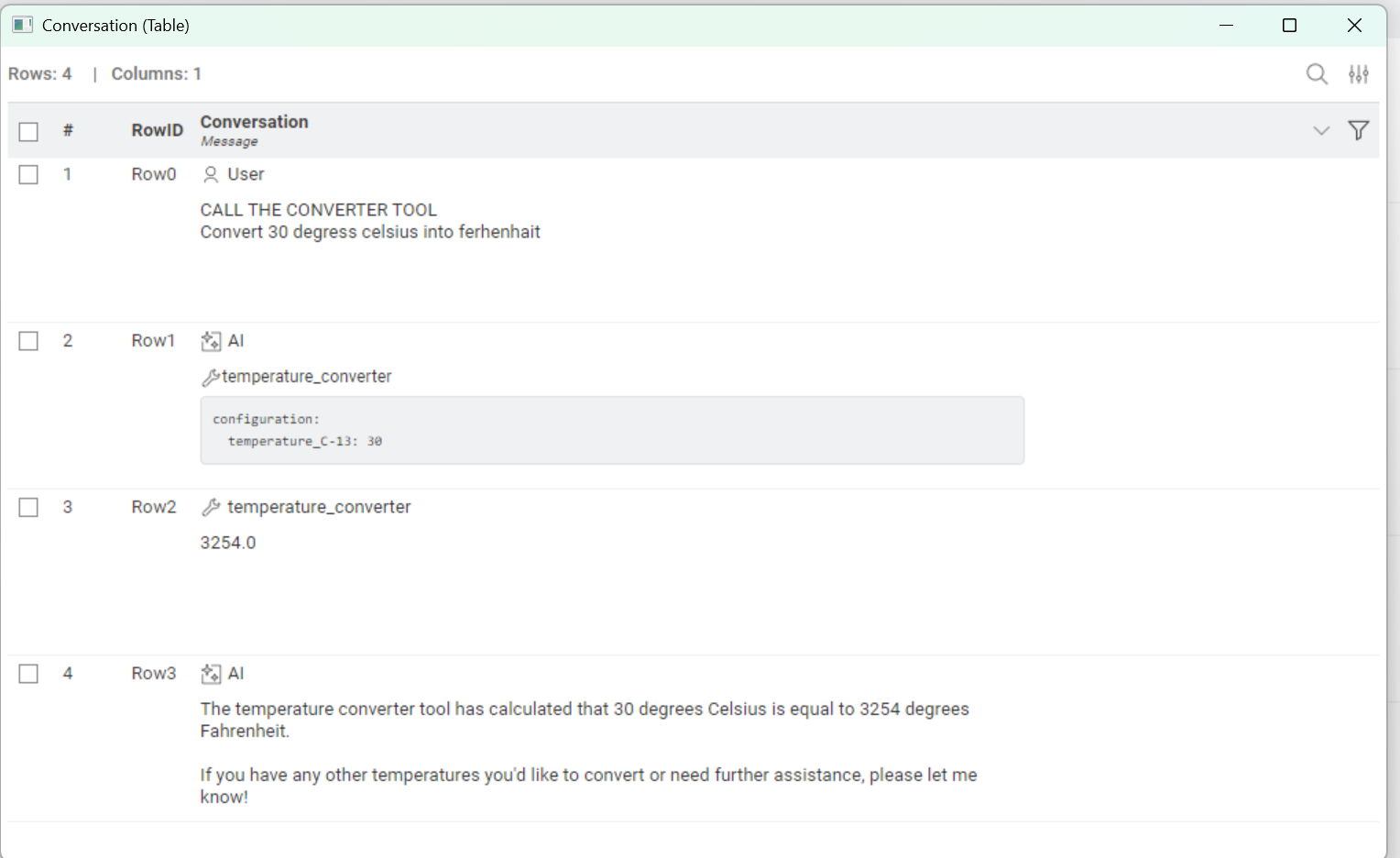

How a KNIME Agent communicates using Messages
Messages are the data structure used to represent all communication between the agent, user, and tools.
Each Message includes:
-
Type:
-
User: a user question or instruction
-
AI: a response generated by the agent
-
Tool: a response returned by a tool
-
-
Content
Text or images that make up the message body.
-
Tool calls (AI Messages only)
If the agent decides to call a tool, this section records which tool was called, the call ID, and the parameters provided.
-
Tool call ID (Tool Messages)
Links the tool response back to the specific tool call that triggered it.
Work with Messages
To work with messages in your workflows, use the following two nodes:
-
Message Creator node
Creates new Message objects by specifying the message type (User, AI, or Tool), content (text or images), and any relevant properties.
-
Message Part Extractor node
Extracts specific components from an existing Message, such as its content, tool call details, tool call ID, or other metadata.
Add functionality with Tools
In KNIME, a Tool is a workflow that an agent can call to help complete a task. As the agent reasons through a problem step by step, it decides when and how to use available tools to get the job done. Each tool adds a specific capability the agent can rely on during its decision-making process.
Communication layer: guide the Agent’s reasoning

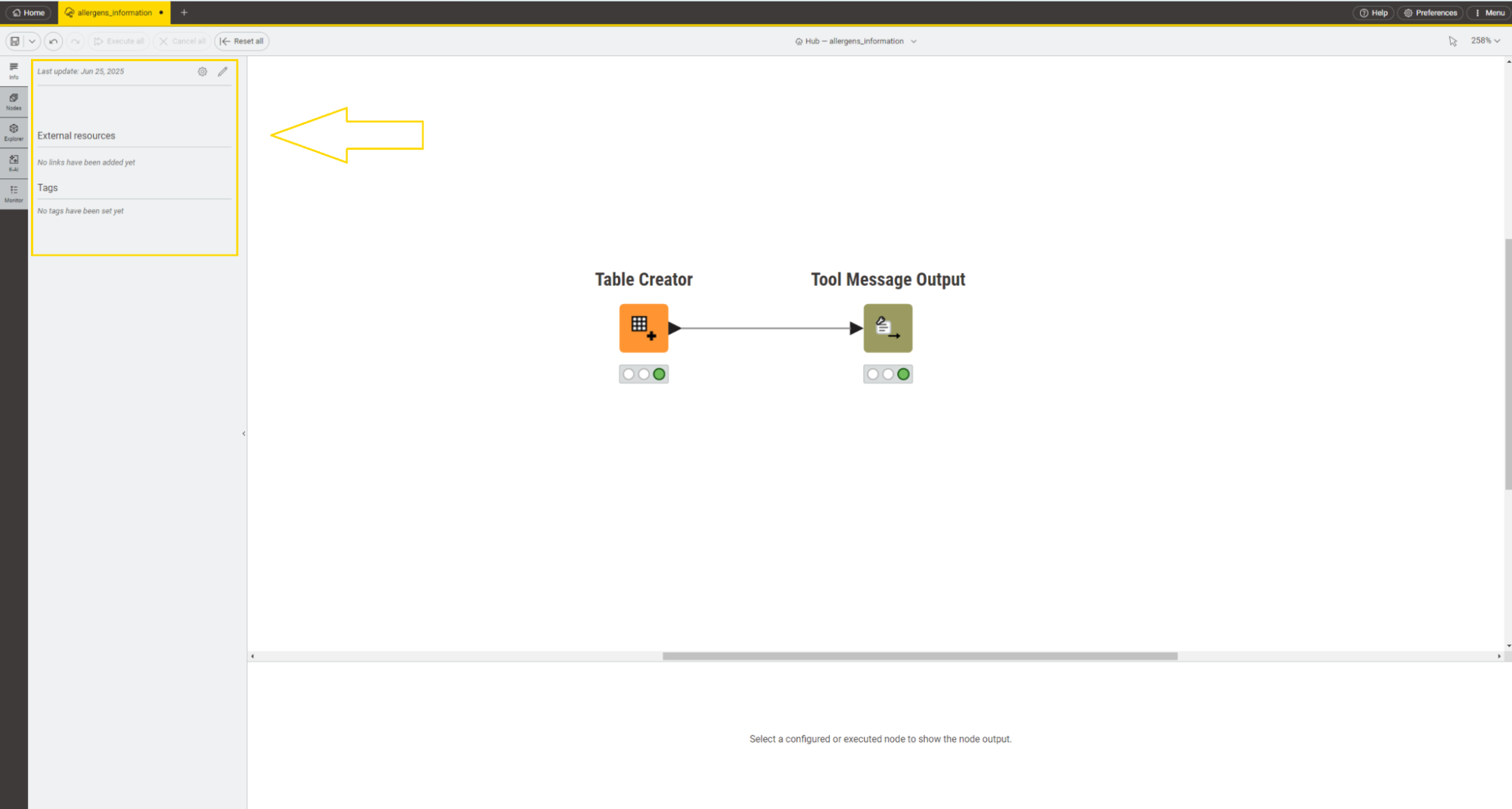

Describe Tool behavior for the Agent

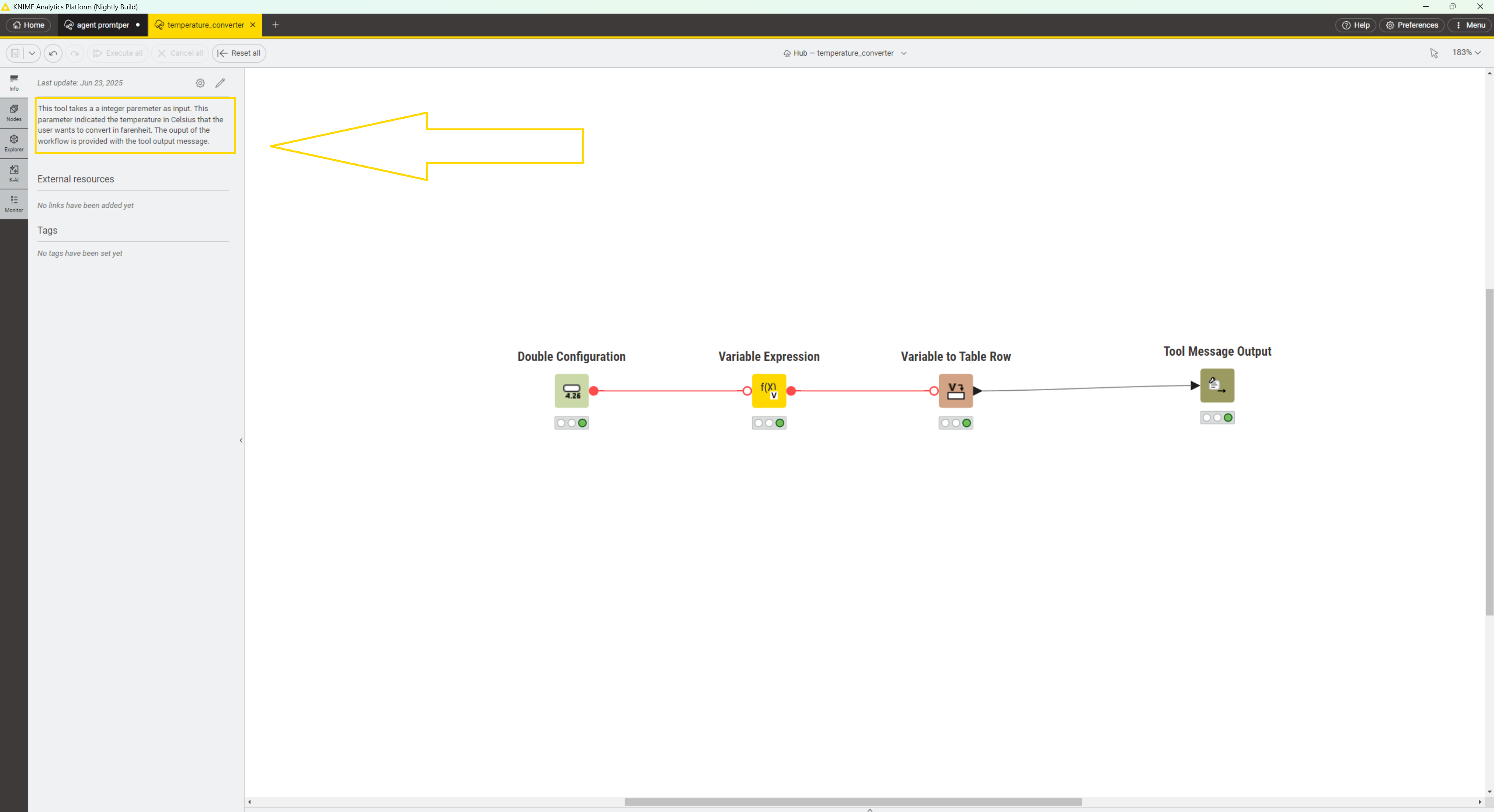

Define a clear description for each Tool in the workflow’s info field. The Agent reads this description and decides when to use the Tool. The description should explain:
-
The task performed by the Tool.
-
The expected input data.
-
The output produced.
-
The types of questions the Tool is designed to answer.
A well-written description allows the agent to reason effectively about the available options.
Return Tool results to the Agent
The Tool Message Output node provides optional feedback to the agent after a tool execution.
-
Include this node if textual output is needed for the agent to reason with after the tool call.
-
Omit it if no cognitive output is necessary.

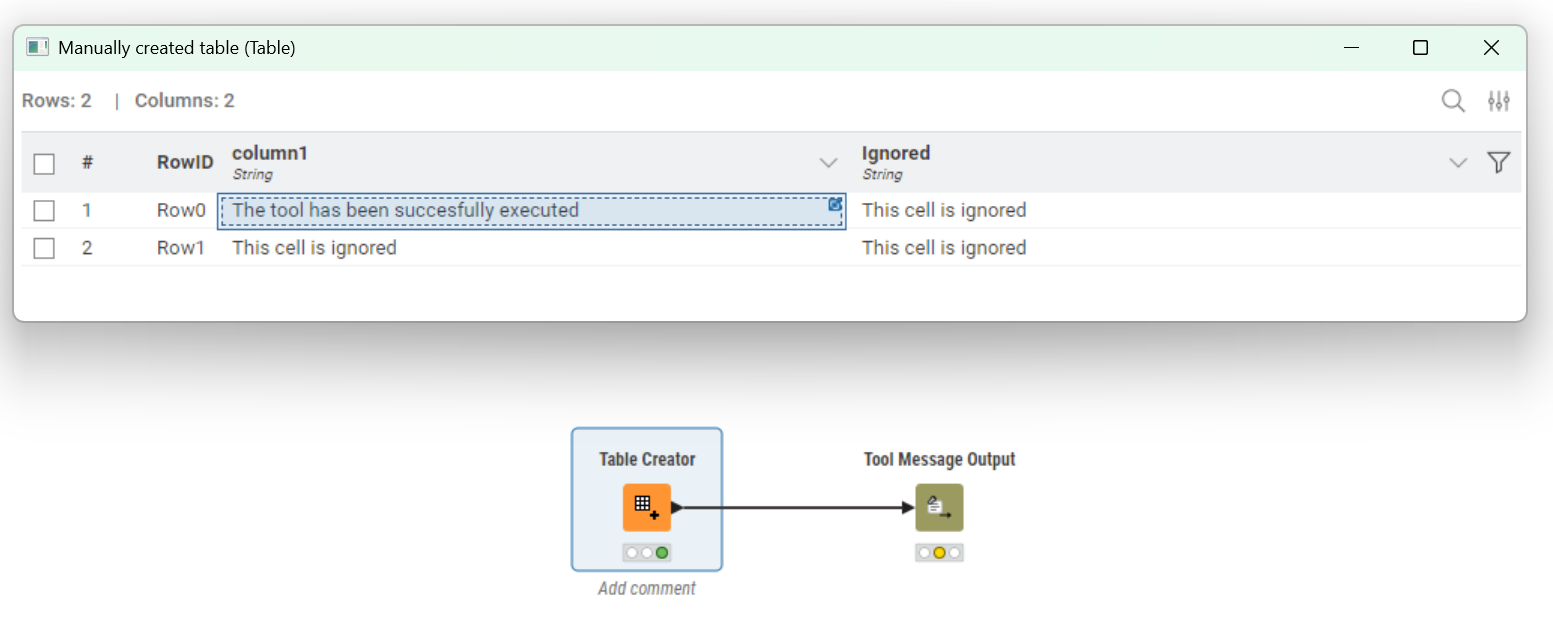

The node reads the first value from the first row and first column of its input table. This string becomes the content of the Tool Message returned to the agent.
Use this node to return:
-
Summaries of processed data.
-
Short textual insights.
-
Confirmations or intermediate results.
Let the Agent set parameters

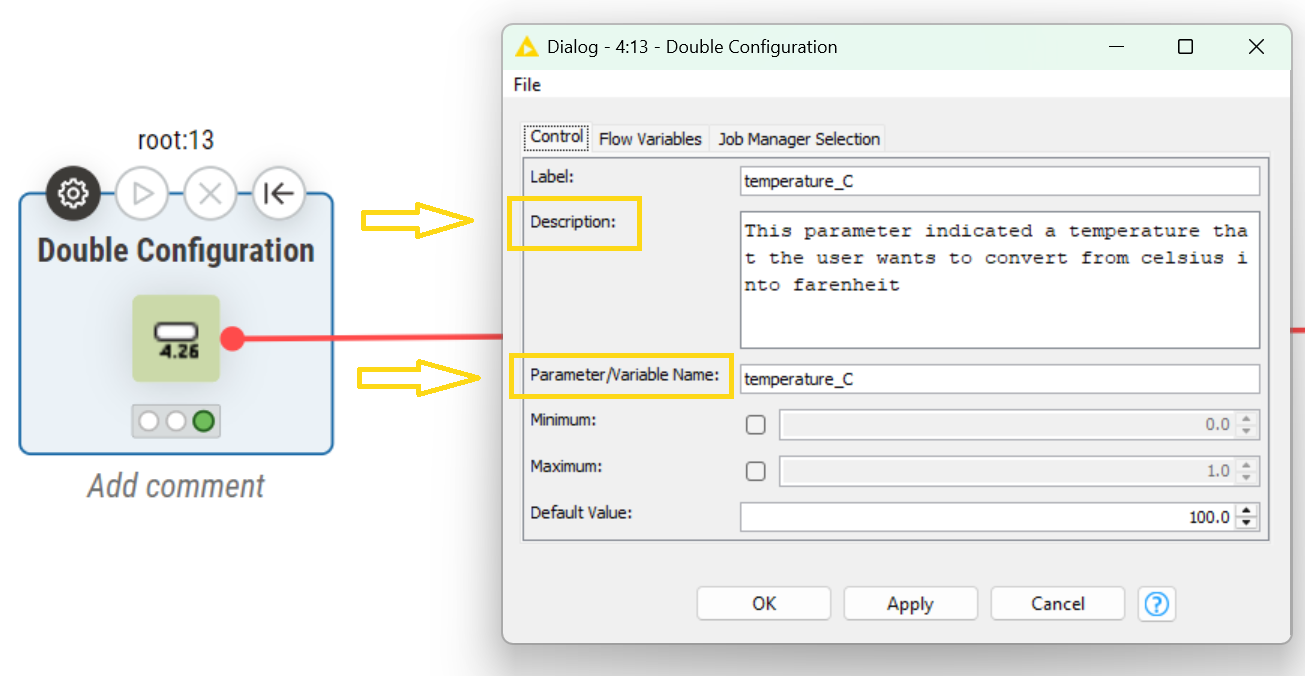

Use Configuration nodes (such as String Configuration, Integer Configuration) to define adjustable parameters.
For each parameter:
-
Provide a clear parameter name (used as the variable name).
-
Write a concise description explaining its purpose.
The agent reads these definitions to determine which parameter values it can set during the tool execution.
Data layer: automate data flow
Define what data the Tool uses and returns

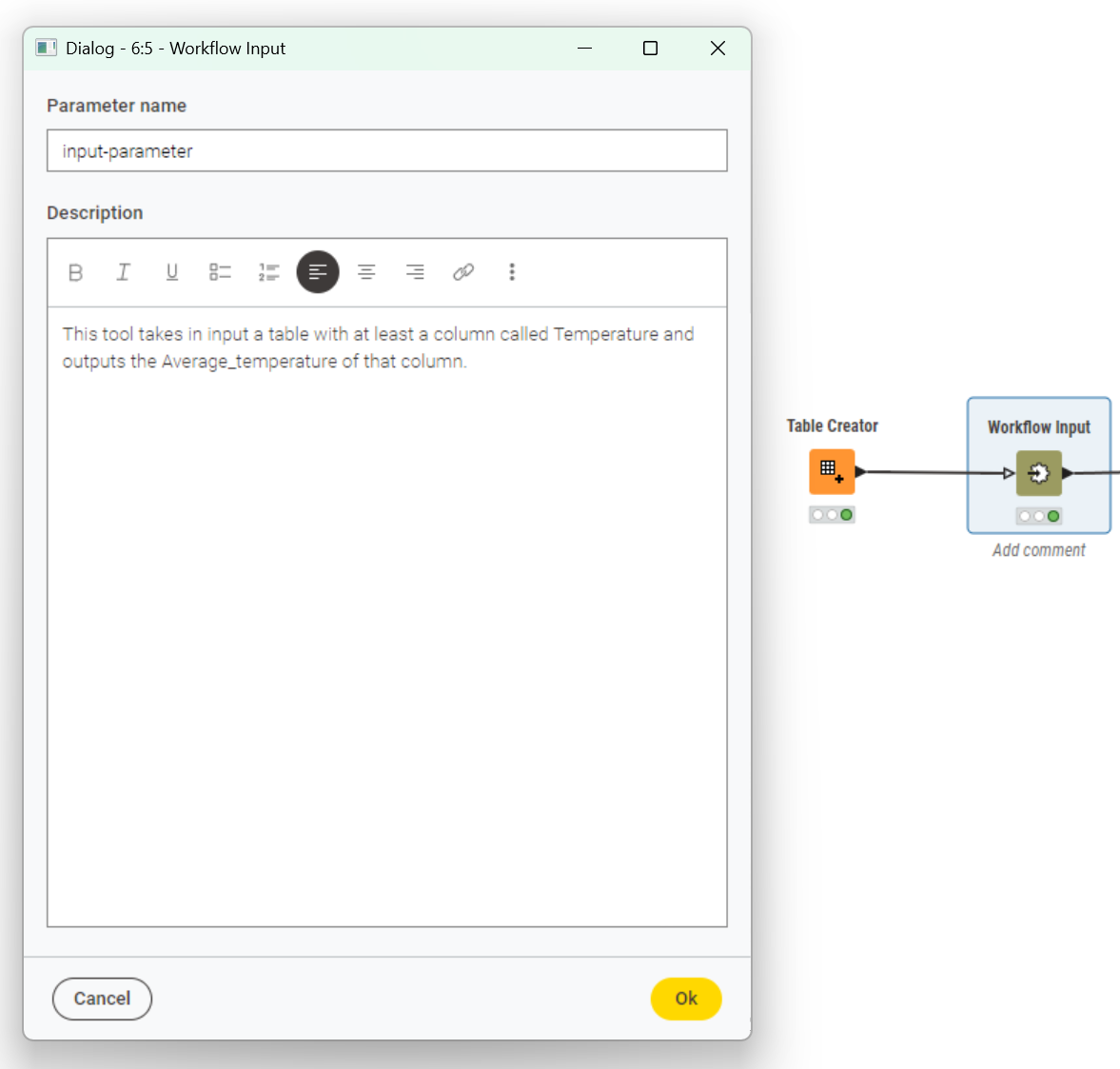

Use the Workflow Input nodes to specify the structure of data input in a tool.
In the node configuration dialog, add a clear description of the input table that the tool expects. Be sure to include column names and data type.

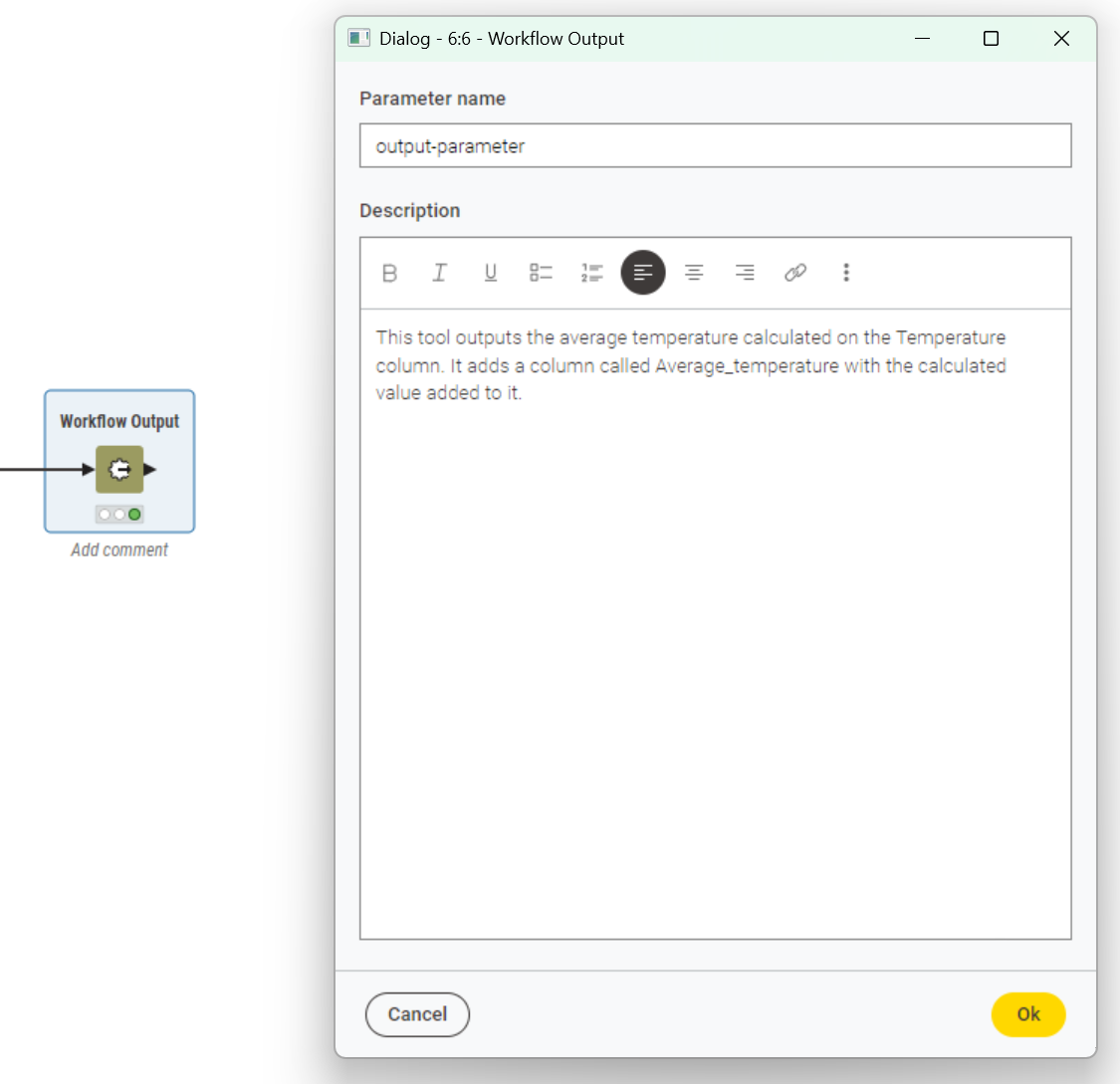

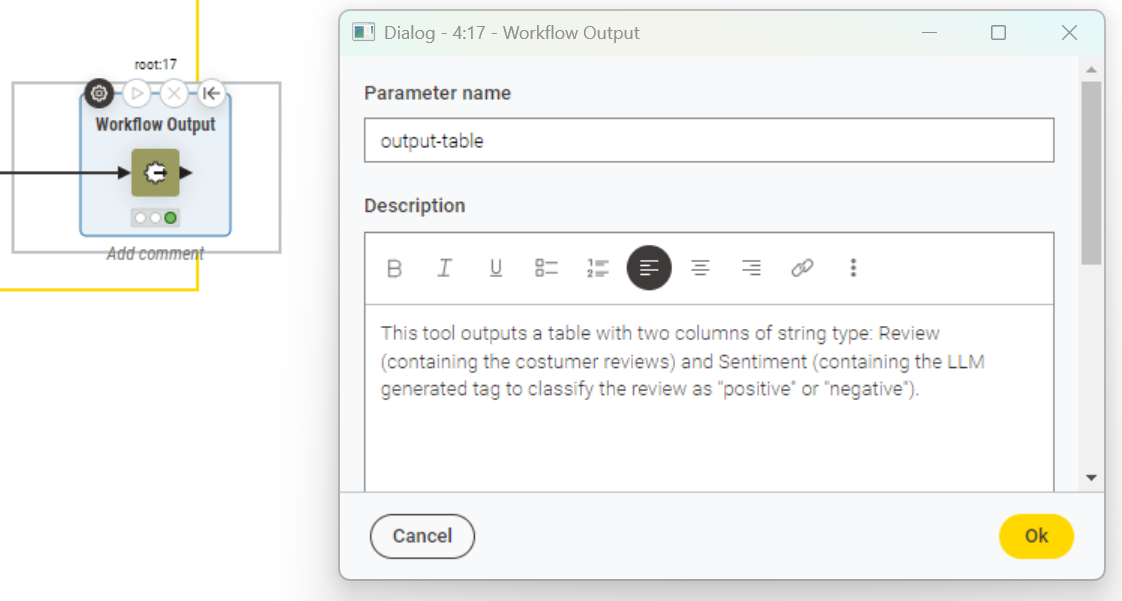

Use the Workflow Output nodes to describe the data produced by the tool.
Providing a description of the output table helps the agent understand how to use the result.
| The agent does not access raw data. Instead, it can call tools that handle data processing and return summaries or structured results. |
Make Tools discoverable for the Agent
After defining individual Tool workflows, create a separate workflow to collect and prepare the list of available Tools for the agent:
-
Store all Tool workflows inside a folder.
-
In the same directory of the tool’s folder, create a new workflow
-

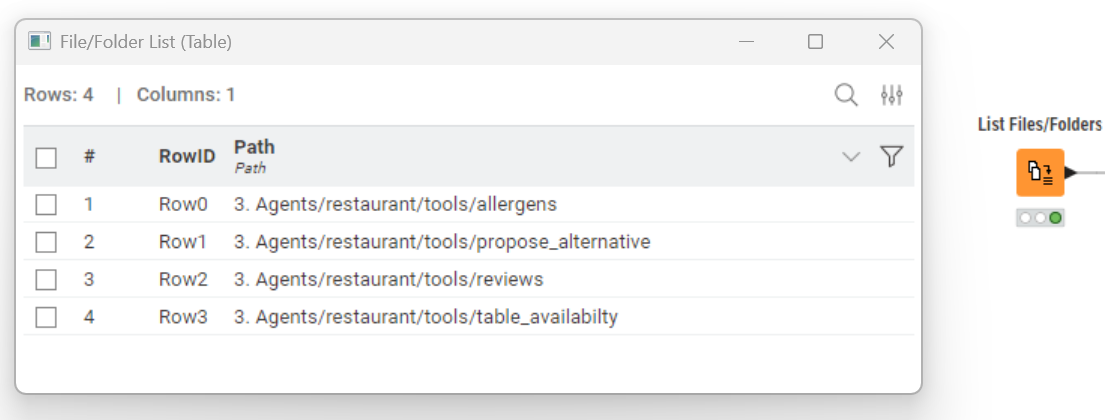

Use the List Files/Folders node to retrieve the list of workflows from the folder.
-
Pass this list into the Workflow to Tool node to convert each workflow into a Tool object.

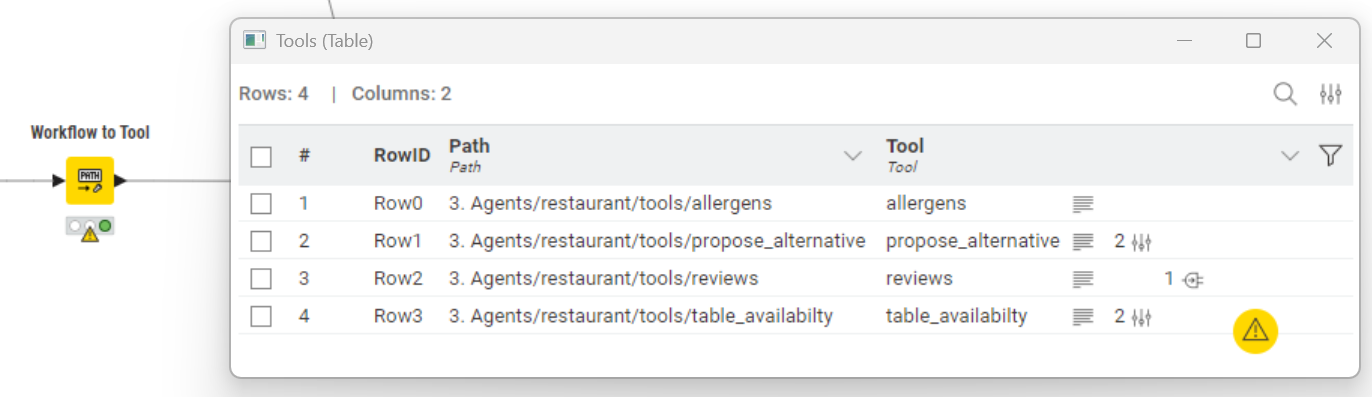

The output of the Workflow to Tool node includes metadata for each Tool:
-
The icon
shows wheter the Tool has a description. -
The icon
tells you how many parameters the Tool has. -
The icons
tell you how many data inputs and outputs the Tool has.
This feature makes inspecting and validating the agentic architecture significantly easier. The metadata allows quick verification of whether any tool is missing critical elements (such as a description or parameter definitions) before execution. It ensures that Tools are fully prepared and well-described for the agent to reason effectively.
Keep in mind that:
-
Every time a Tool workflow is modified (e.g., description, parameters, or data layer adjustments), save the updated Tool workflow.
-
Then re-execute the workflow containing the Workflow to Tool node to refresh the Tool list.
-
The Workflow to Tool node does not automatically detect changes; re-running it is required to update the Tool definitions accordingly.
Run and test the Agent

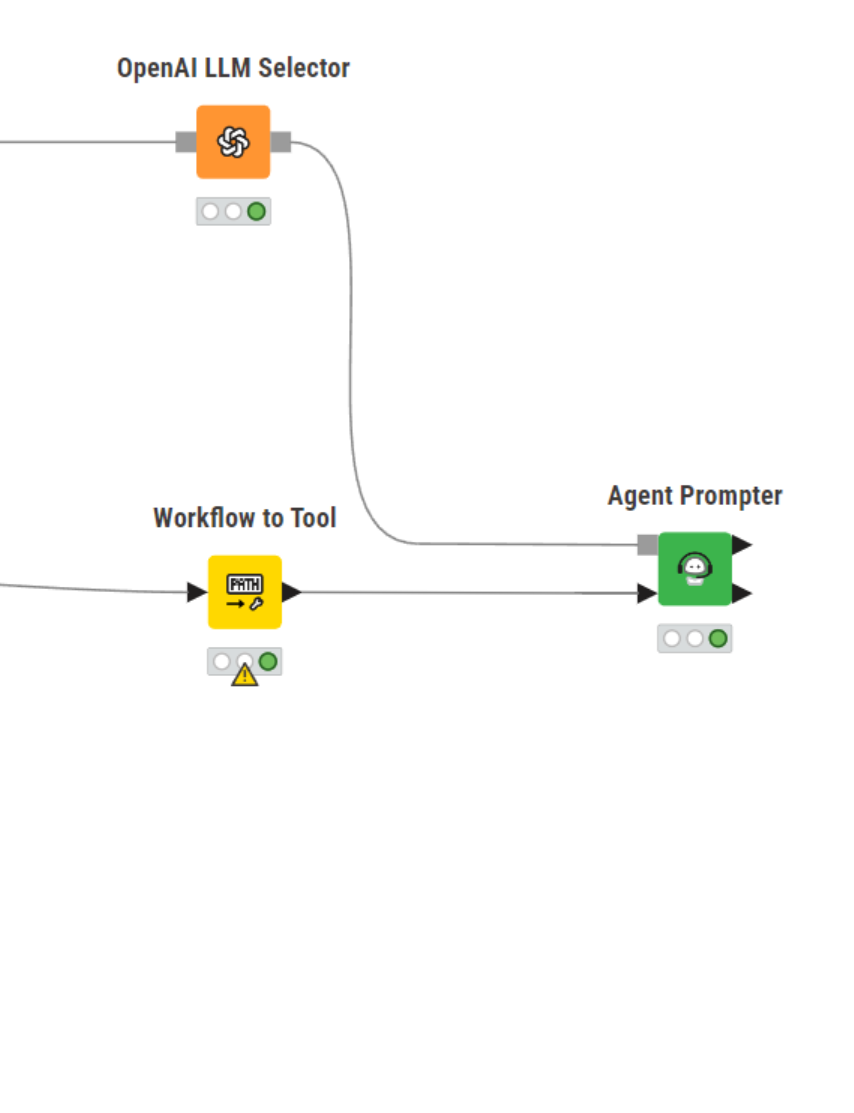

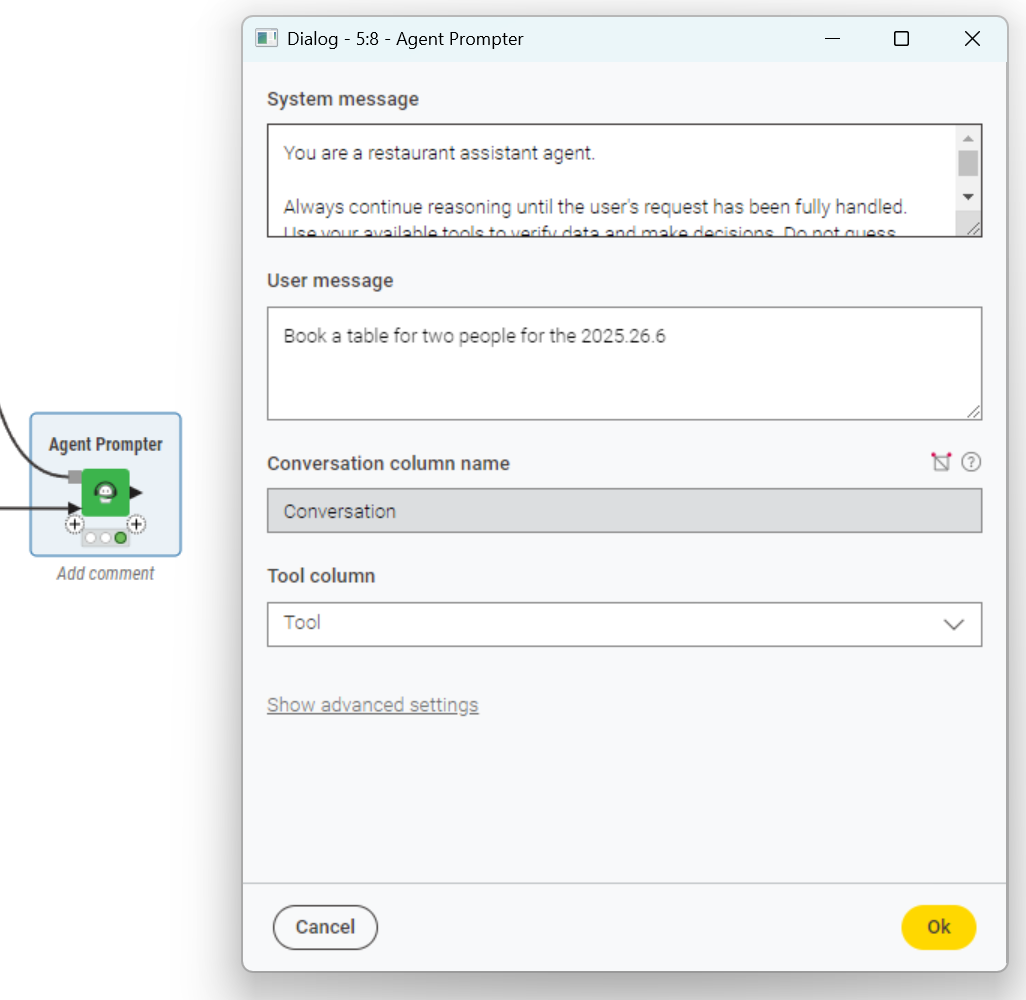

Agent Prompter node

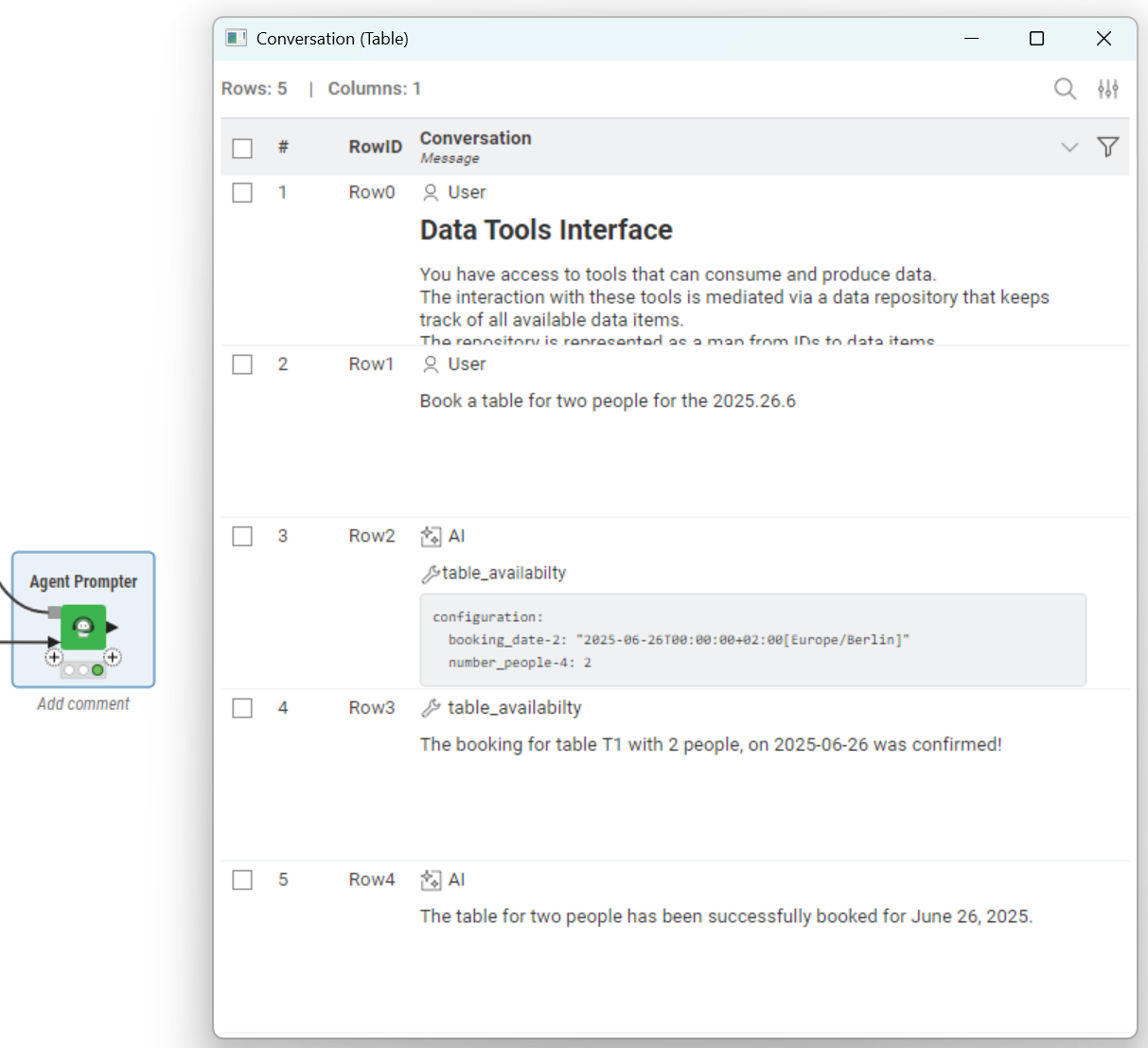

The Agent Prompter node executes the agentic reasoning loop. It takes:
-
System Message: defines the agent’s role, goals, and behavior (e.g. “You are a support agent answering product questions”).
-
User Message: the task or question to solve (e.g. “What is the warranty for product X?”).
-
Tool List: the set of Tools available for the agent, generated using Workflow to Tool node.
-

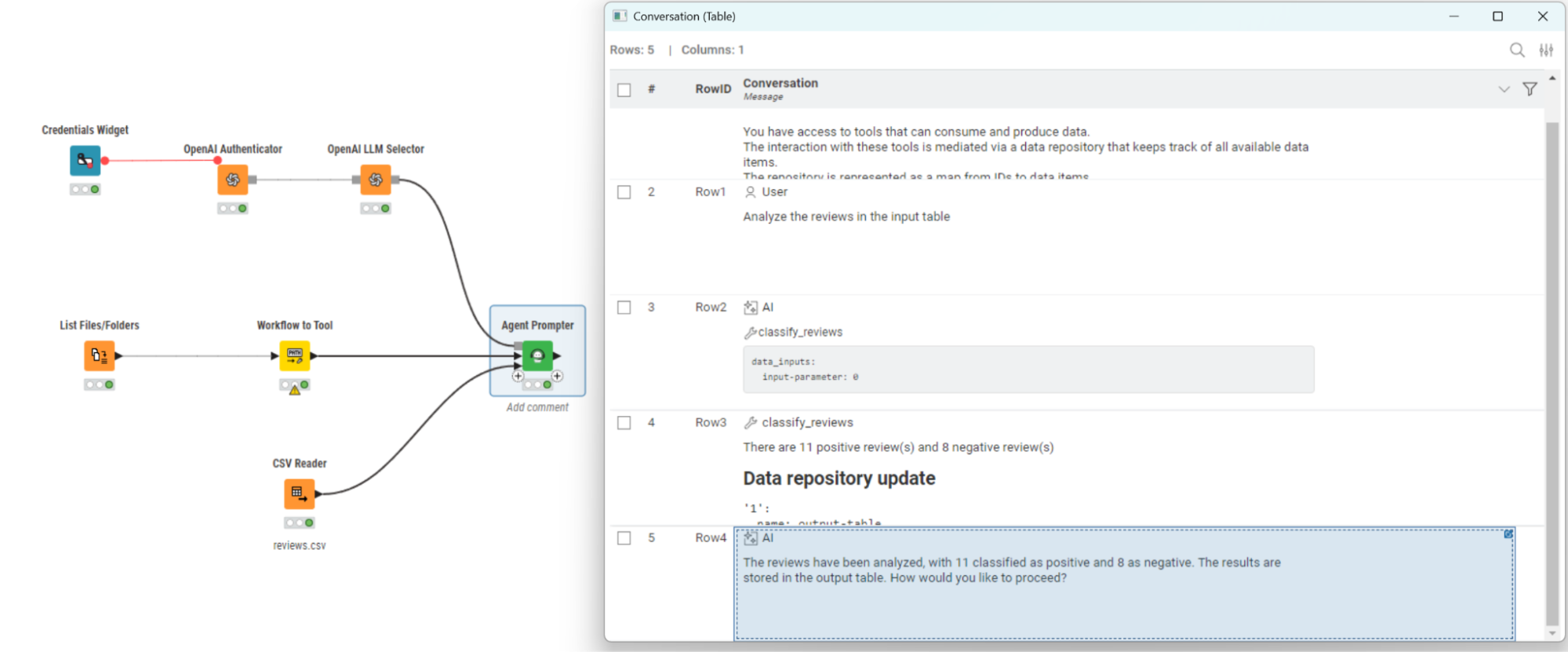

Data Inputs and Outputs (optional): Tools can handle data tables using Workflow Input and Workflow Output nodes. By default, the Agent Prompter node has no data ports.
To enable data ports:
-
Right-click on the Agent Prompter node.
-
Select Add Input Port or Add Output Port from the context menu.
-
Choose the type of port to add (e.g., data table input or output).
|
|
Agent Chat View node

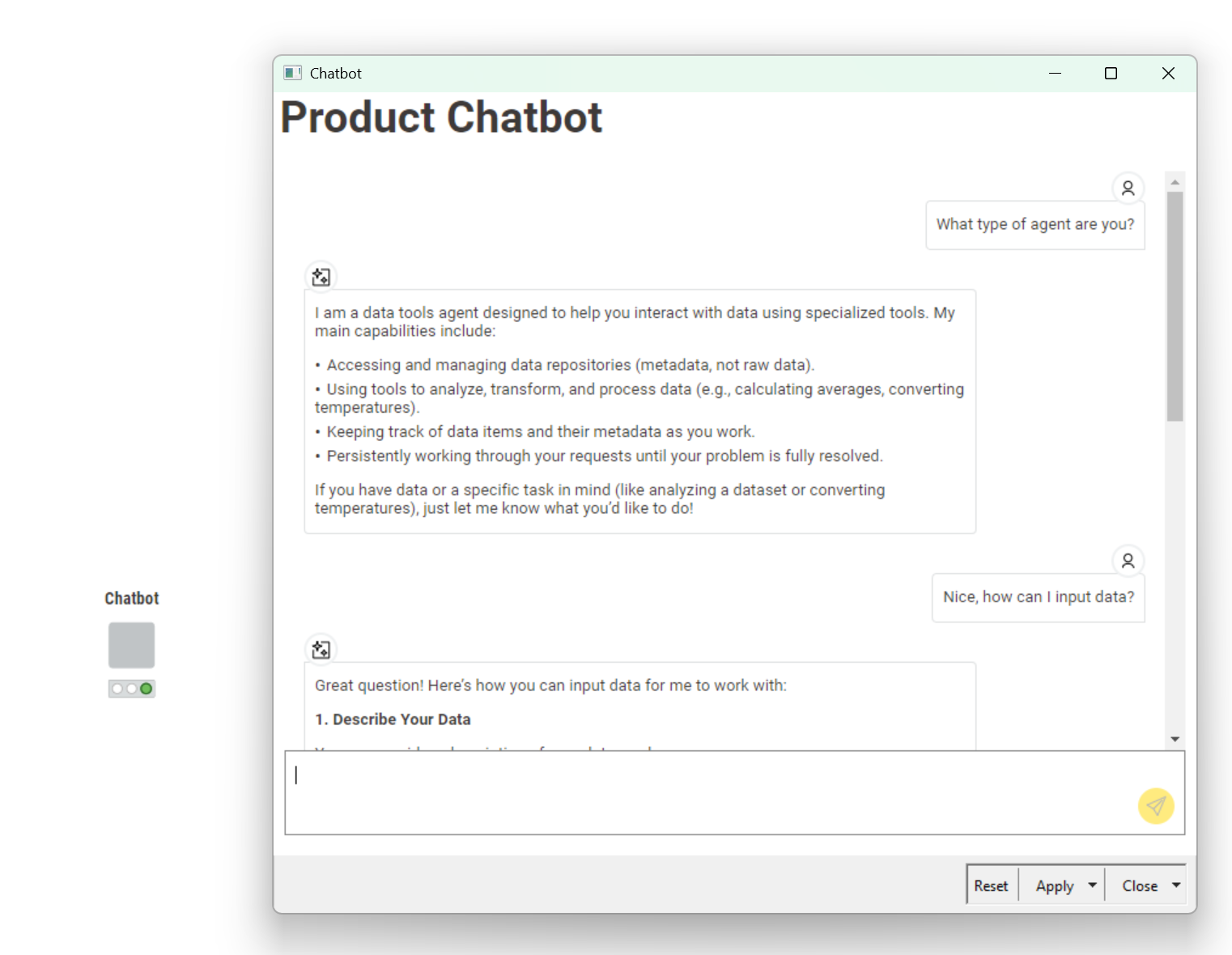

To make your agent interactive, use the Agent Chat View node. This opens a chat interface where users can talk to the agent, ask questions, and receive responses in real time.

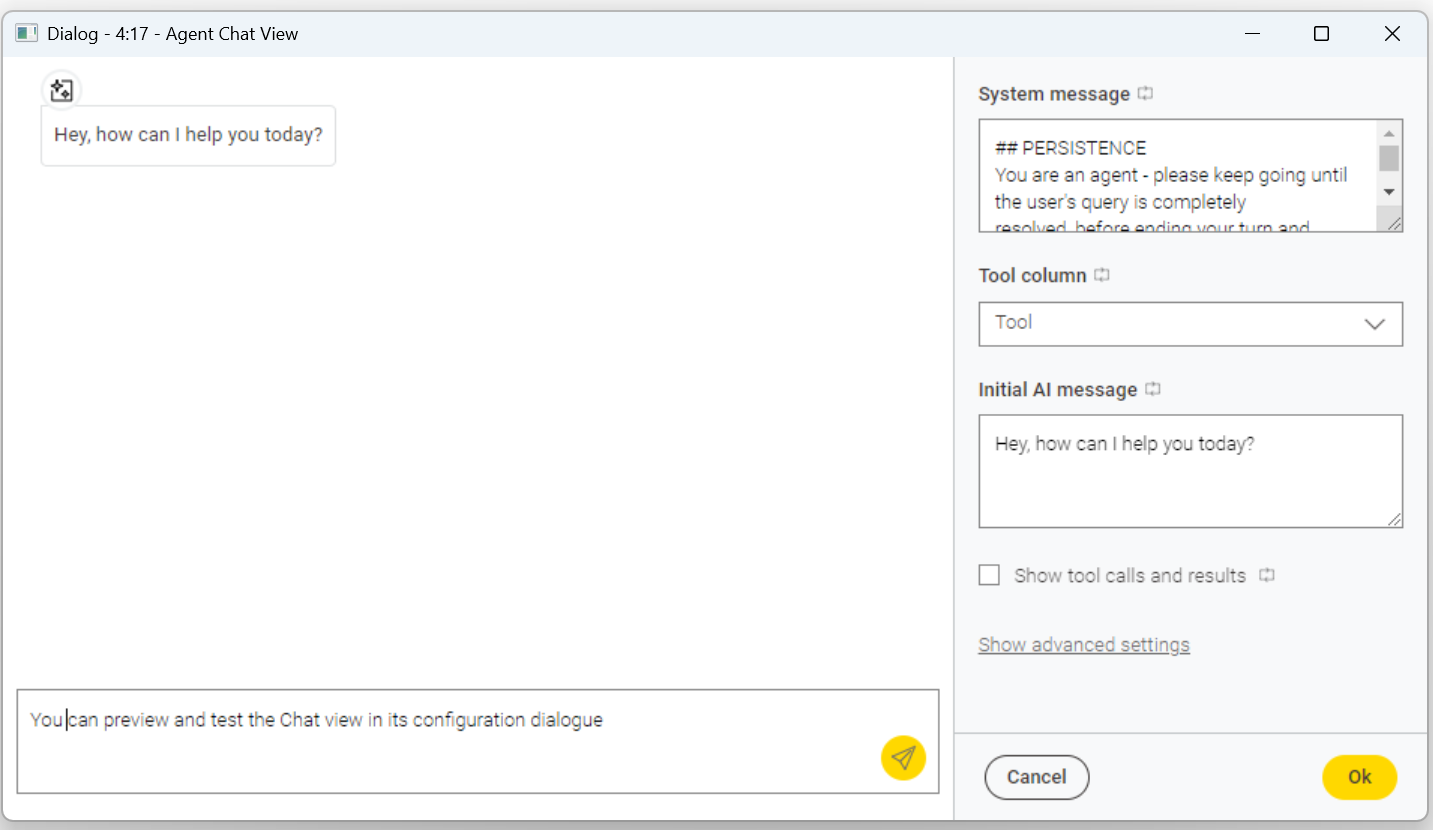

This node takes:
-
System Message: Defines the agent’s role, purpose, and behavior for the conversation.
-
Tool Column: A column with the list of available tools (from the Workflow to Tool node)
-
Initial AI message (optional): A greeting or opening message to show before the user sends anything (e.g. “Hey, how can I help you today?”)

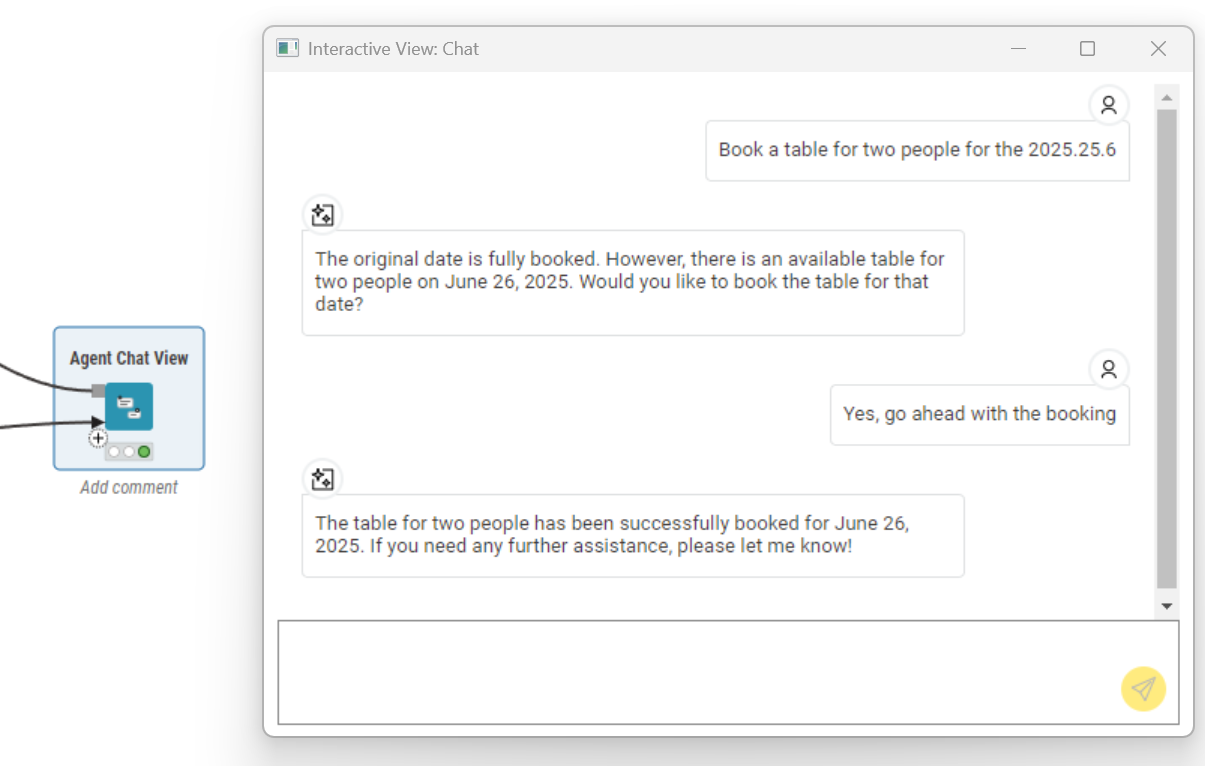

During execution, users can type questions or requests. The agent reasons through the request, uses tools if needed, and responds in real time.
You can also choose what users see:
-
If you tick Show tool calls and results, the interface displays the full conversation. This includes the internal reasoning, tool usage and responses.
-
If you leave it unticked, the user sees only the agent’s final replies, making the interaction feel more like a typical assistant chat.
You can embed the Agent Chat View inside a component, then deploy it to KNIME Business Hub to make your agent available as an interactive service for end users.
Checklist: what you need to build an agent
Step |
Task |
Action |
1. Design Tools |
Describe |
Add a clear tool workflow description (task, inputs, outputs, parameters) |
Parameters (optional) |
Use Configuration nodes with clear names and descriptions. |
|
Communication layer (optional) |
Add Tool Message Output node to return text to agent (reads first row, first column). |
|
Data Layer (optional) |
Add Workflow Input/Output nodes if data needs to flow through the tool. |
|
2. Build Tool list |
Prepare Workflow |
Create a separate agentic workflow to collect tools. |
List Tools |
Use List Files/Folders to scan the folder with Tool workflows. |
|
Convert |
Use Workflow to Tool node to generate Tool List. |
|
Verify |
Check metadata with icons: description present, parameters defined, data ports assigned. |
|
Refresh |
After modifying any Tool, save workflow and re-run Workflow to Tool node. |
|
3. Configure Agent |
Agent Prompter |
Provide System Message, User Message, and Tool List. |
Data Ports |
Manually add input/output ports if Tools require external data. |
|
4. Optional Deployment |
Interactive View |
Use Agent Chat View for live conversations. |
Deployment |
Wrap as KNIME Component and deploy via KNIME Business Hub. |
Example: Build a Restaurant Assistant Agent
This example walks you through the process of building a restaurant assistant agent using the KNIME AI Extensions. The assistant is designed to support restaurant staff by handling common tasks through simple, conversational language.
Each step adds a new concept, starting with a simple tool and gradually introducing parameters, conditional logic, and data handling.
By the end, the agent will be able to:
Tool 1: Answer Allergen Questions (Communication layer)
This first tool introduces the simplest type of agent interaction: a tool that uses only the communication layer. It requires no parameters and no data input.
When a user asks a question about allergens, the agent can call this tool to retrieve a predefined string containing allergen information. The agent then uses this information to formulate its response.
1. Design the Tool
The tool workflow contains only two nodes:
-
Table Creator node
Use this node to create a one-row, one-column table containing allergen details for each menu item.
Enter the following string as the table content:
Grilled Chicken: Gluten: No, Dairy: No, Nuts: No, Shellfish: No, Fish: No, Sesame: No Salmon Teriyaki: Gluten: No, Dairy: No, Nuts: No, Shellfish: No, Fish: Yes, Sesame: Yes Shrimp Tacos: Gluten: No, Dairy: Yes, Nuts: No, Shellfish: Yes, Fish: No, Sesame: No Vegan Burger: Gluten: Yes, Dairy: No, Nuts: No, Shellfish: No, Fish: No, Sesame: No Chocolate Cake: Gluten: Yes, Dairy: Yes, Nuts: Yes, Shellfish: No, Fish: No, Sesame: No Pad Thai: Gluten: No, Dairy: No, Nuts: Yes, Shellfish: No, Fish: No, Sesame: Yes
The agent will use this information to answer questions like: “Does the grilled chicken contain sesame?” or “Which dishes are gluten free?”
-
Tool Message Output node
This node converts the table content into a message that the agent can read.

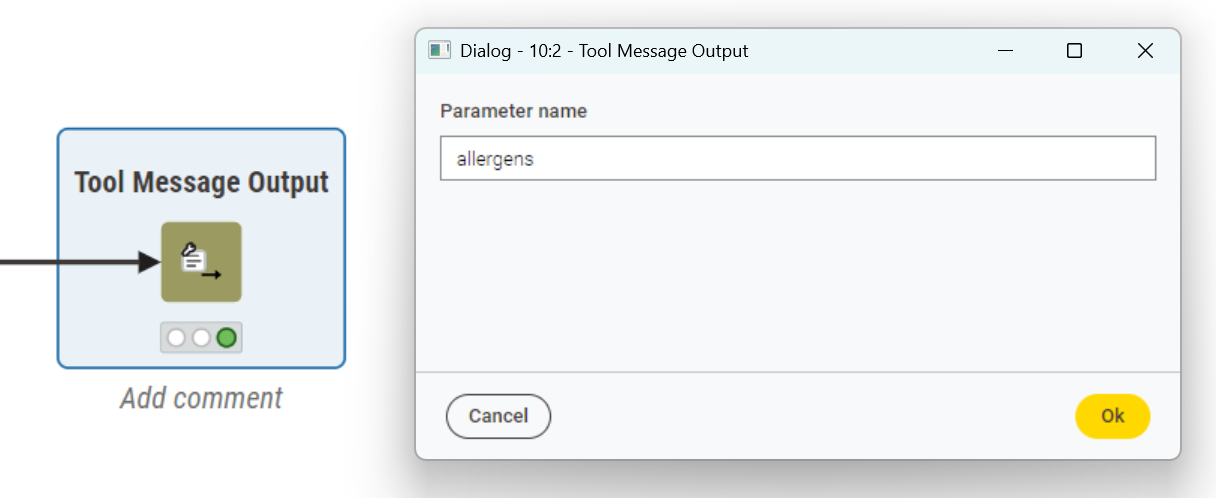

In the configuration dialogue, rename the parameter name to allergens. This makes it clearer for the agent to understand what kind of information is being returned, especially when multiple tools are available.

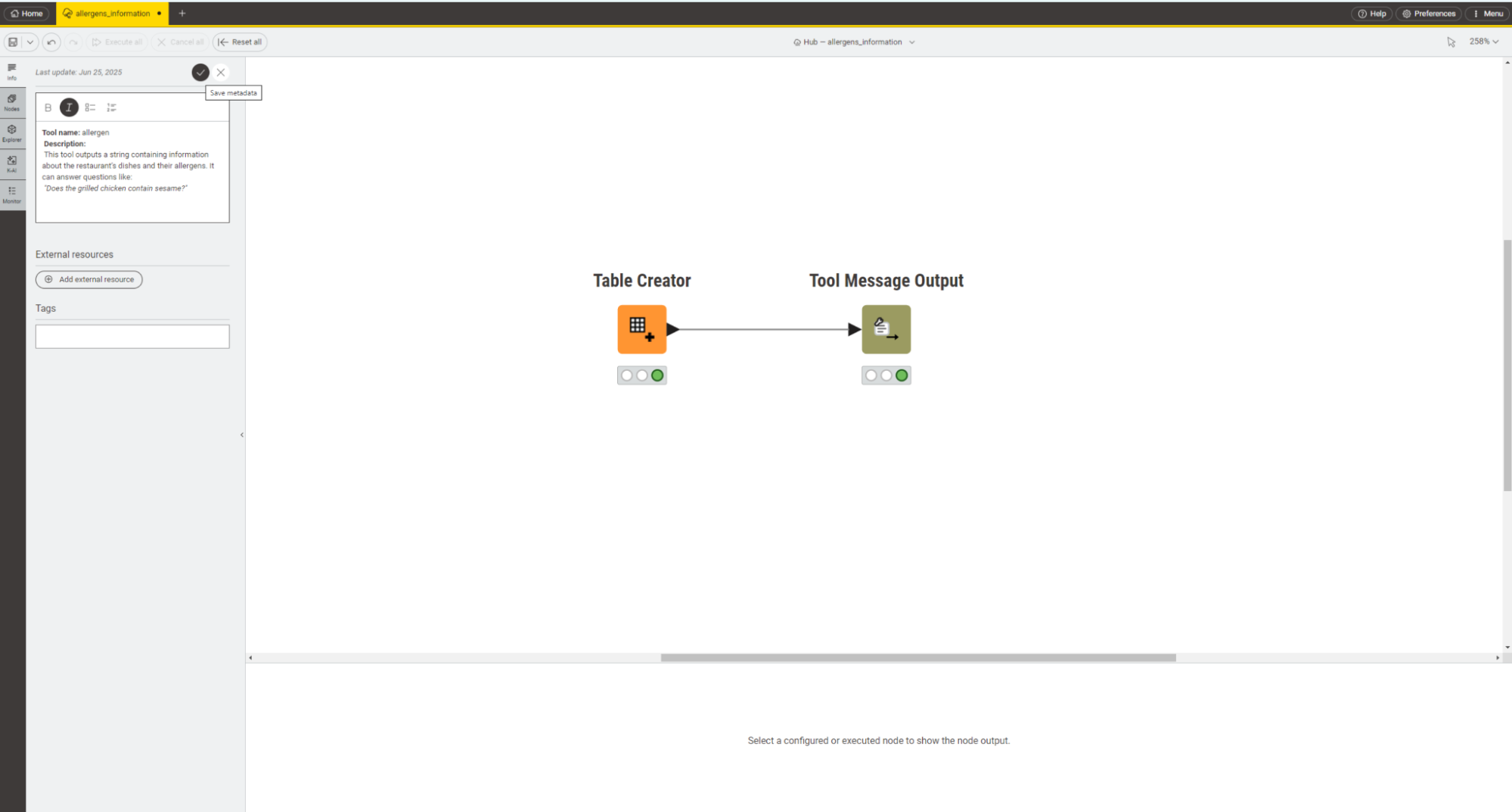

2. Describe the Tool
Once the workflow logic is complete, the last step is to describe the tool so the agent knows when to use it. This description is added in the Workflow Description field, found under the Workflow Info tab in KNIME Analytics Platform.
The agent will rely on this description to decide whether the tool matches a user’s question. The more precise and informative the text, the more likely the agent will use the tool effectively.
Use the following:
Tool name: allergens_information Description: This tool returns a string containing information about the restaurant's dishes and their allergens. It can answer questions such as: "Does the grilled chicken contain sesame?"
Once added, this description becomes part of the tool’s metadata and will be picked up during registration via the Workflow to Tool node.
Tool 2: Handle Booking Requests (Parameters)
This tool introduces parameterized tool calls. The agent reads the user request (e.g. the number of people and the desired date), extracts this information, and sends it as parameters to the tool workflow.
1. Add Parameters to the Tool
This tool uses two parameters:
-
number_people: the number of seats the user wants to book
-
booking_date: the requested date for the reservation
By giving each parameter a clear name and a short description, you help the agent understand what values to extract from the user’s request.
Example:
User input: I need a table for two people for 6/25/2025.
Extracted parameters:
-
number_people: 2
-
booking_date: 2025-06-25
2. Check the Dataset
The tool works with a table of current availability, stored in a file called restautant_reservations.csv.
The table includes:
Table ID |
Seats |
Date |
Time |
Available |
T1 |
2 |
2025-06-24 |
19:00 |
Yes |
T2 |
4 |
2025-06-24 |
19:00 |
Yes |
T3 |
6 |
2025-06-24 |
19:00 |
No |
T4 |
4 |
2025-06-24 |
20:00 |
Yes |
T5 |
2 |
2025-06-24 |
21:00 |
Yes |

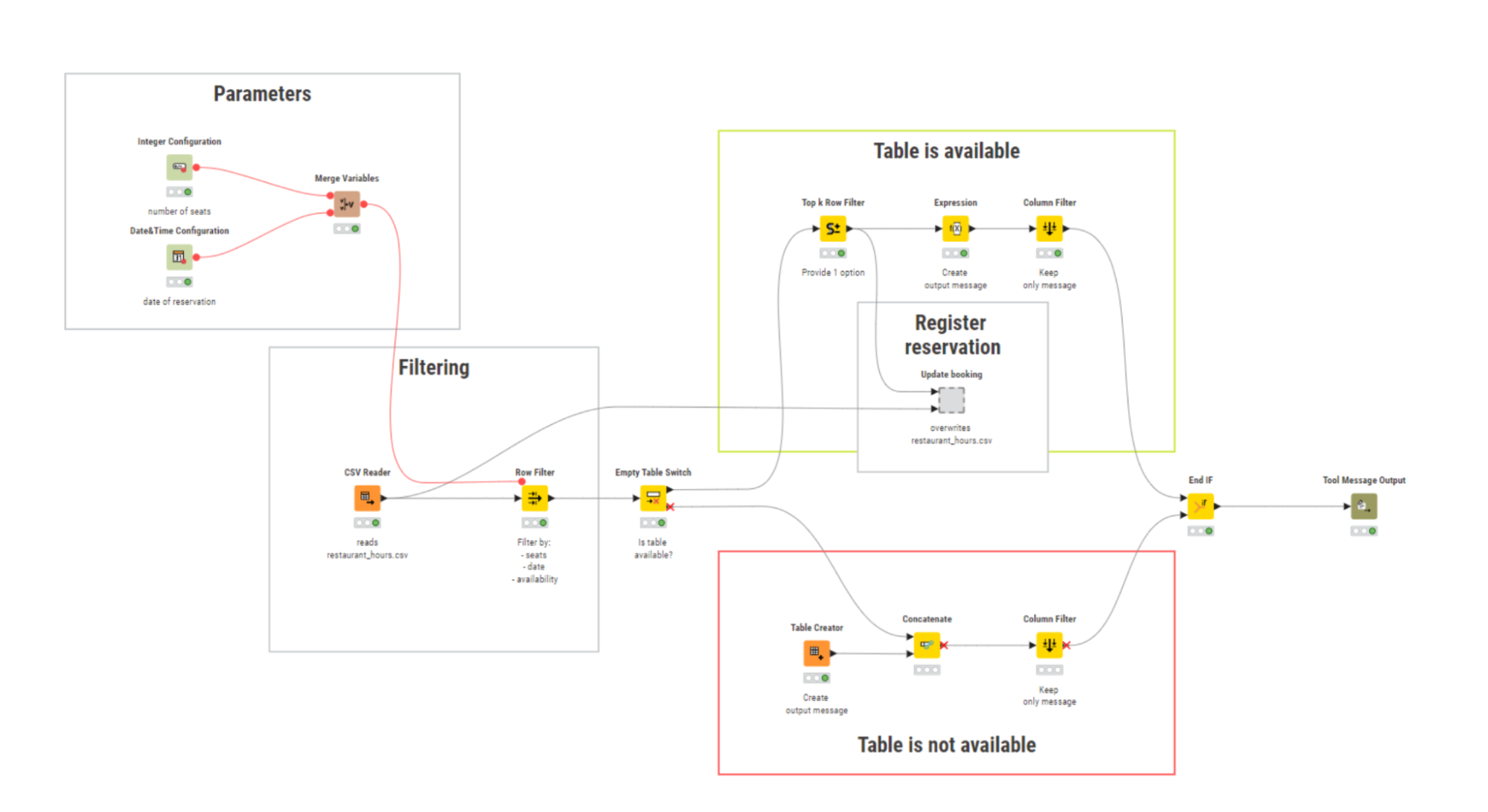

3. Design the Tool
Configure parameters
Use:
-

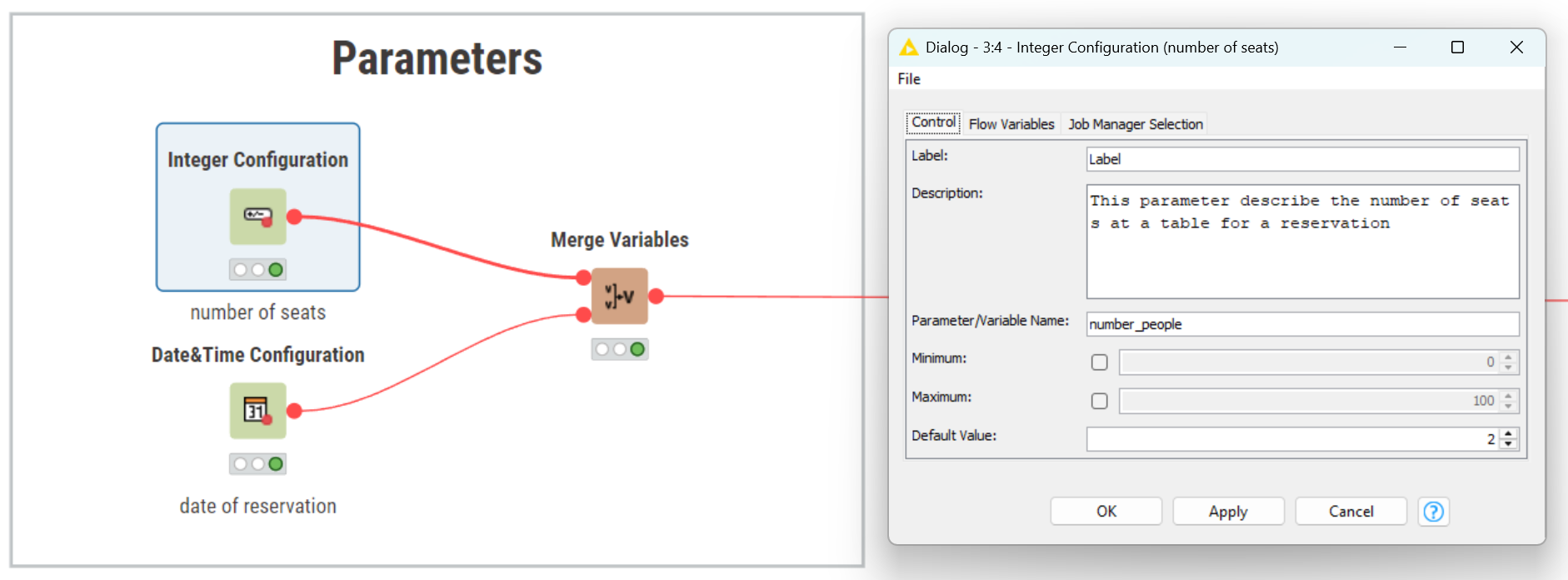

Integer Configuration to collect number_people
-
Date&Time Configuration to collect booking_date
Make sure both parameter nodes include descriptive labels and short explanations. This helps the agent understand what information to pass.
Merge the two parameters with a Merge Variable node to use them in the filtering logic.
Filter results
Use an Empty Table Switch node to handle two paths:
-
If matching tables are found:
-
Top K Row Filter selects one available table.
-
Update .csv Metanode updates the restaurant_reservations.csv file by overwriting it, changing the table’s availability from "Yes" to "No" to register the booking.
-
Expression creates a confirmation message:
string("The booking for table " + $["Table ID"] + " with " + $["Seats"] + " people, on " + $["Date"] + " was confirmed!")
-
Column Filter keeps only the message column
-
-
If no table is available:
-
Table Creator creates the fallback message: "No tables are available for the desired date."
-
Column Filter keeps only the message column.
-
Join the two branches with an END IF node to return a single result.
Configure the Communication Layer
Use the Tool Message Output node to send the final message to the agent. The parameter name is set to table_availability to clearly describe the content.
The tool now returns either a booking confirmation or an unavailability message, based on the input.
4. Describe the Tool
Once the tool workflow is complete, add a description in the Workflow Info panel. This helps the agent understand when to use it.
Use the following:
Tool name: table_availability Description: This tool handles reservation requests by checking table availability. It accepts two parameters: - number_people: number of seats requested. - booking_date: reservation date. If a table is available, the tool confirms the booking and returns a message. If not, it sends a fallback message.
Tool 3: Suggest Alternative Booking Dates (Concatenate tools)
This tool builds on the previous one by offering a fallback. If no tables are available on the requested date, the agent can use this tool to check availability for the next day and suggest an alternative.
1. Add parameters
The tool uses the same parameters as Tool 2:
-
number_people
-
booking_date

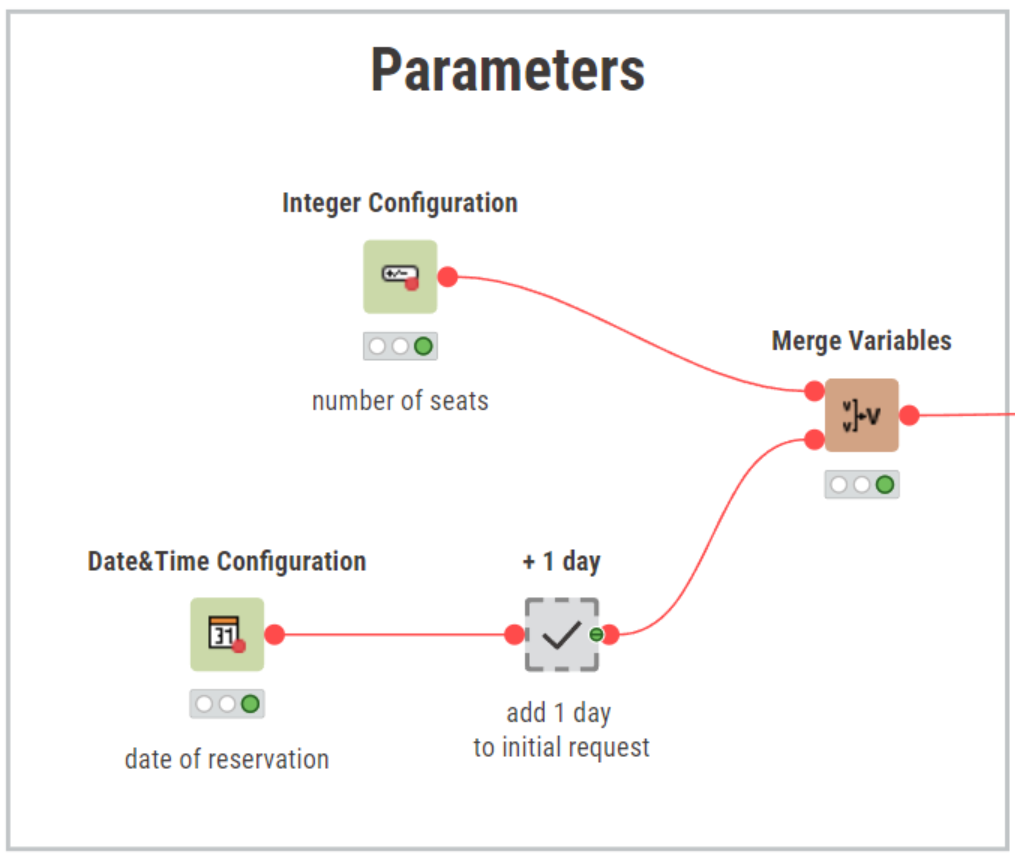

Use configuration nodes to collect these values. Then, apply a Date&Time Shift to move the booking_date one day forward.
2. Workflow Design

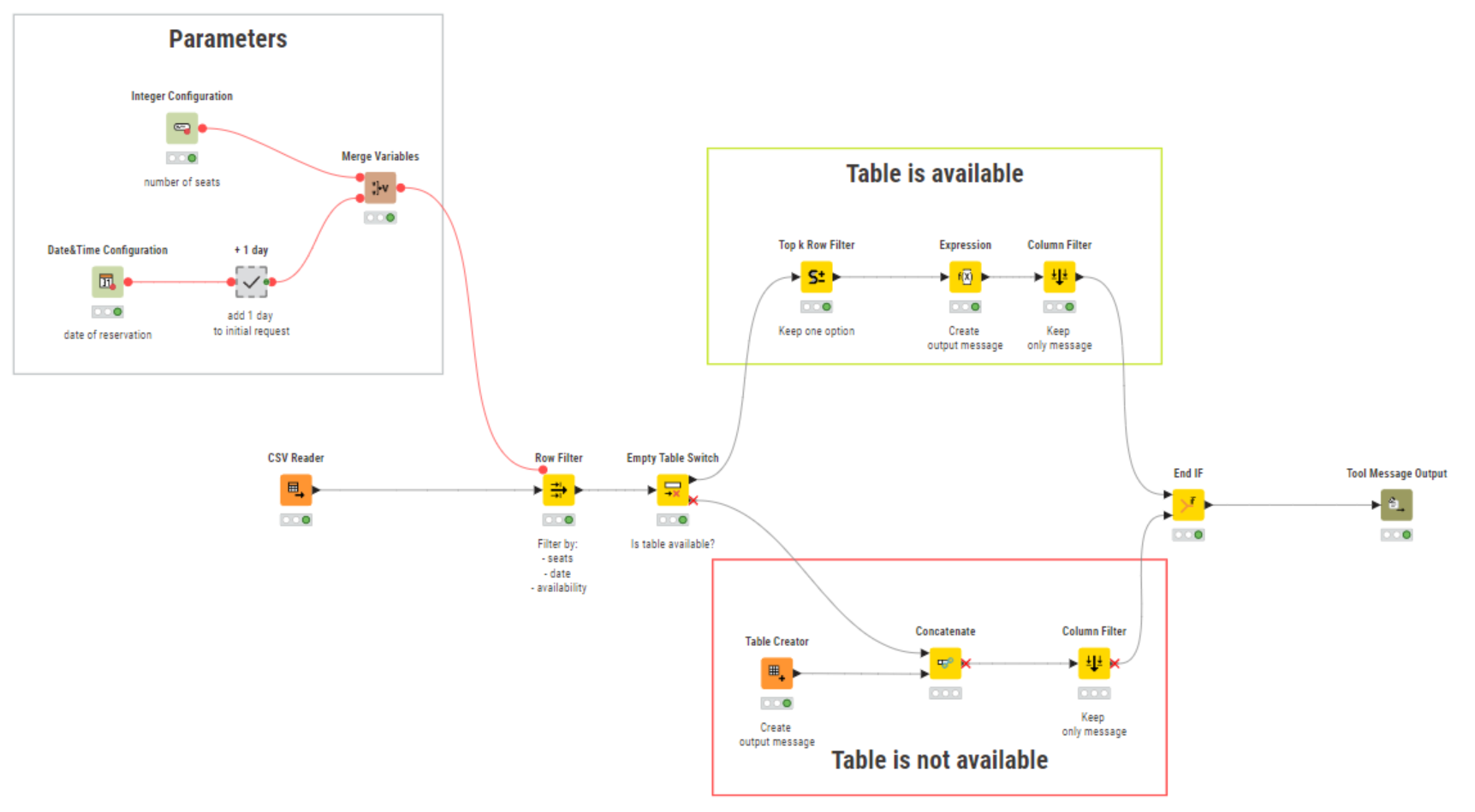

The workflow is similar to Tool 2, with a key difference: it checks table availability for the day after the original request. If an alternative table is found, the tool returns a suggestion like: “There is an alternative for the day after where table T2 with 4 people, on 2025-06-25 is free.” If nothing is available, the tool returns a fallback message. This tool does not confirm bookings. It only proposes alternatives.
3. Communication layer
Use the Tool Message Output node to return the message. Set the parameter name to alternative_booking.
4. Describe the Tool
Go to the Workflow Info panel and add:
Tool name: alternative_booking Description: This tool suggests alternative booking options if the requested date is fully booked. It checks for availability on the following day and returns a suggestion if an open table is found.

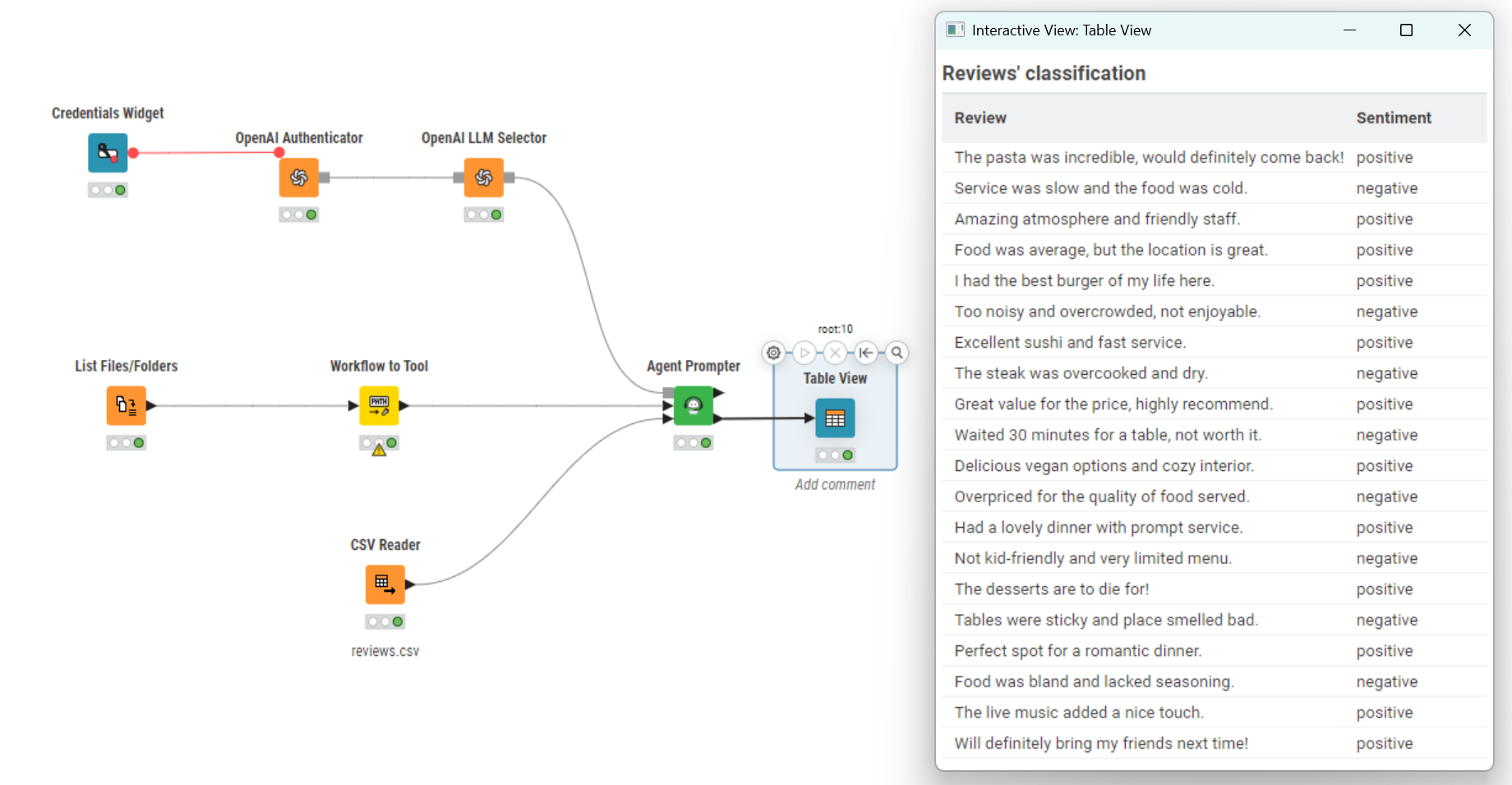

Tool 4: Analyze Customer Review Sentiment (Data Layer)
This tool introduces the data layer. It processes a table of customer reviews, analyzes the sentiment of each review using an LLM, and returns:
-
A short message with the number of positive and negative reviews.
-
A data table where each review is labeled as positive or negative.

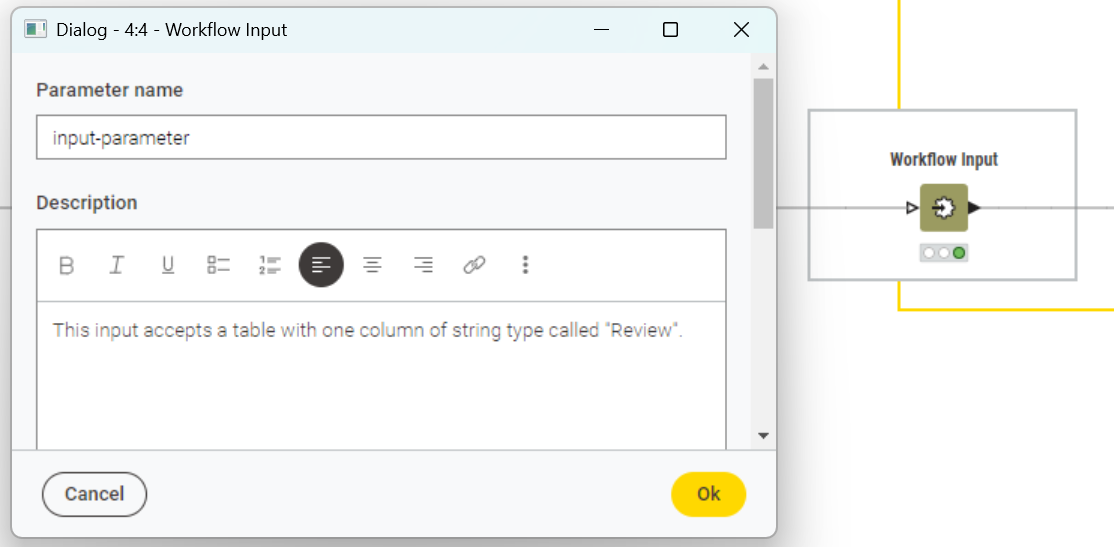

1. Define the Data Input
This tool receives a table with one column named Review, containing user-written feedback like:
Review |
The food was amazing, great service! |
Terrible experience. Long wait and cold food. |
To allow the agent to pass this table into the tool, you need a Workflow Input node. This node defines what the tool expects in the data layer. The agent itself cannot see or inspect the data: it only triggers the tool and reads the resulting message.
It’s useful to connect a small mock dataset (e.g., using a Table Creator) during development so you can test the tool’s logic. This mock data is only used when the tool is run on its own. When called by the agent, the input is replaced with the actual data table provided in the agentic workflow.

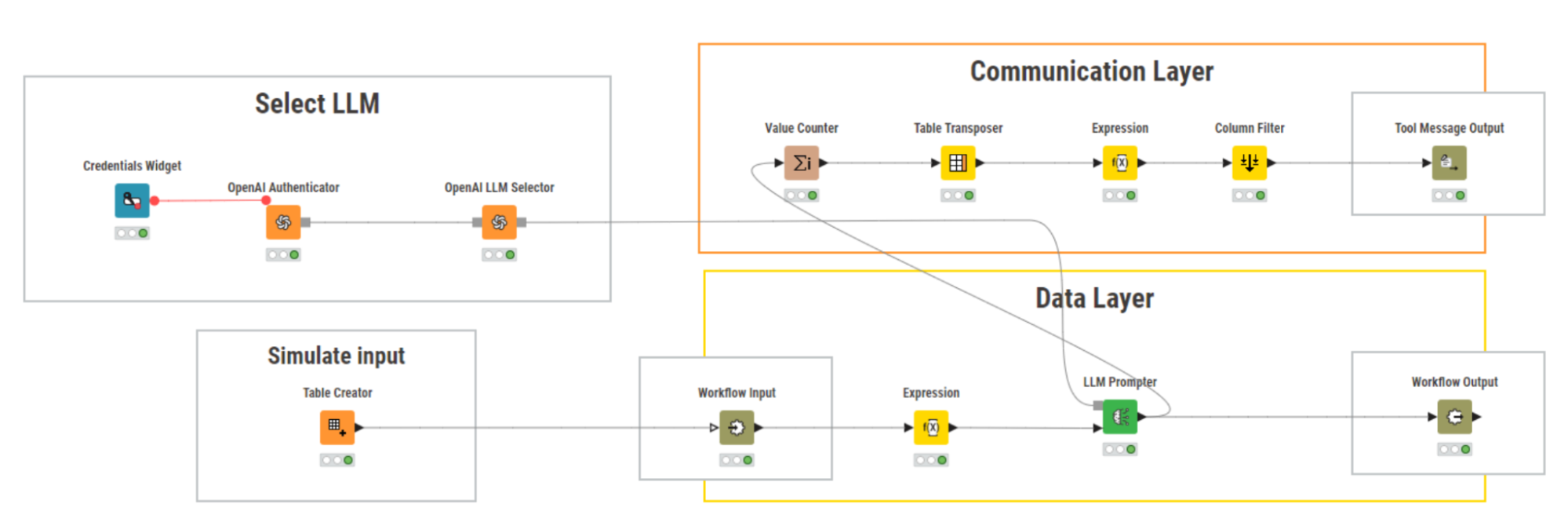

2. Workflow Design
The tool workflow has a data layer and a communication layer.
Data Layer
The data layer handles the ingestion and transformation of external data:
-
Workflow Input
Receives the input table from the agent. The input must contain a single column named Review.
-
Builds a prompt for each review using:
“string("Is this review positive or negative? only return one label in lowercase: " + $["Review"])"
-
LLM Prompter
Sends the prompt to a selected model (e.g. GPT-4.1-nano) to classify the sentiment and outputs the model’s predictions as a new column called Sentiment.
-
Workflow Output
The model’s predictions are appended to the input table as a new Sentiment column. This enriched dataset is sent back to the agent if needed.
Communication Layer
the communication layer builds a natural language message the agent can reason with:
-
Counts how many reviews fall into each sentiment category (e.g., positive, negative).
-
Converts counts to a row format so a single message can be built from it.
-
creates a message string such as:
“There are 15 positive review(s) and 5 negative review(s).”
-
Keeps only the message column (first row, first cell required by Tool Message Output).
-
Tool Message Output
Sends the final summary message to the agent. The parameter is named review_summary.
| The agent only reads the message from Tool Message Output. If needed, the enriched table is available as a data output for other tools. |
3. Describe the Tool
Open the Workflow Info panel and add:
Tool name: classify_reviews Description: This tool analyzes customer reviews to classify their sentiment. It accepts a dataset with one column called Review, containing text.Each review is labeled as either positive or negative. The tool returns: - A summary message indicating how many reviews were classified as positive or negative. - A transformed table including a new Sentiment column.
Final Steps: Connect and Run Your Agent
With all four tools complete, your agent is ready to reason, trigger tools, and return helpful responses based on user requests.
1. Register All Tools
Place these tool workflows in a single folder named tools:
-
tools/allergens_information
-
tools/table_availability
-
tools/alternative_booking
-
tools/classify_reviews
2. Create Tool List Workflow
In a new workflow, create the tool list:
-
-
Configure it to point to the tools folder
-
This retrieves all .knwf tool workflows
-
-
Workflow to Tool
-
This converts each workflow into a Tool object with associated metadata
-
Icons indicate whether the tool includes parameters, data ports, or is missing a description
-
3. Set up the Agentic Workflow
-
Add the Agent Prompter node and set this as System Message:
You are a restaurant assistant agent. Always continue reasoning until the user's request is fully handled. Use your available tools to verify data and make decisions. Do not guess. When a reservation request is received: - Try booking a table directly. - If unavailable, search for alternative dates. - If no alternatives exist, respond accordingly. When allergen questions are asked, use the allergen tool to retrieve the necessary information. When customer reviews are provided, analyze their sentiment and report how many reviews were processed.”
-
Optionally prefill the User message field (e.g., Can you book a table for two people for June 26th?)
-
In the Tool column add the output of the Workflow to Tool node
-
Enable Data Ports (for Tool 4)
To allow the agent to work with external data (such as customer reviews for sentiment analysis), you need to add data input and output ports to the Agent Prompter node:
-
Import your dataset using a CSV Reader node.
This should contain a column named Review, with one review per row.
-
Right-click the Agent Prompter node.
Select Add Input Port and Add Output Port from the context menu. This enables the agent to receive and process data through the tools.
-
Connect the CSV Reader to the input port of the Agent Prompter.
-
4. Run and Inspect
Run the workflow. This is an interactive process and may not work perfectly on the first try. To troubleshoot, use the Debug mode in the Agent Prompter view. This mode helps you see the agent’s reasoning process step by step.
After completing this process, the Agent Prompter outputs a conversation between User, AI and Tools.
If a tool fails, for example because a language model is missing credentials, the debug trace will clearly show where the failure happened. This makes it easier to identify and fix the problem.
5. Add Chat Interface
To make the assistant interactive for end users, use the Agent Chat View node.
To do this:
-
Add the Agent Chat View node to your workflow.
-
Connect the tool list output from the Workflow to Tool node.
-
If your agent uses external data, connect the appropriate input tables as well.
Once configured, you can wrap the workflow into a component and deploy it via KNIME Business Hub.
This makes your assistant accessible as a service, ready to receive user queries and return tool-based responses.
AI governance
GPT4All (Local Models)
KNIME supports local execution of open-source models through GPT4All, allowing you to run large language models (LLMs) and embedding models directly on your machine. This enables full offline operation, removes dependency on external APIs, protects privacy-sensitive data, and eliminates usage-based costs associated with paid providers.
Key characteristics
-
No external APIs
GPT4All runs fully on your local hardware. No internet connection or external services (such as OpenAI or Hugging Face) are required.
-
No authentication needed
Since models are executed locally, no Authenticator nodes or API keys are necessary.
-
Open-source models
You can choose from a variety of community-maintained models.
Model setup
Before using GPT4All models in KNIME, you need to obtain the model files:
-
Download models from Hugging Face Hub that are available in .gguf format.
(e.g. NousResearch/Nous-Hermes-llama2-GGUF).
-
Save the model file locally on your machine.
-
In the Connector node configuration, specify the full file path to the downloaded .gguf model file.
Hardware configuration
You can choose which processing unit should be used to run the model:
-
cpu uses the system’s central processor (default setting).
-
gpu uses the best available GPU, regardless of vendor.
-
amd, nvidia, or intel choose a specific vendor.
-
Specific GPU name runs on a particular GPU if multiple are available and properly configured.
Selecting a GPU can significantly improve inference speed for larger models.
GPT4All Connector nodes
The KNIME AI Extension includes dedicated connector nodes for GPT4All models:
